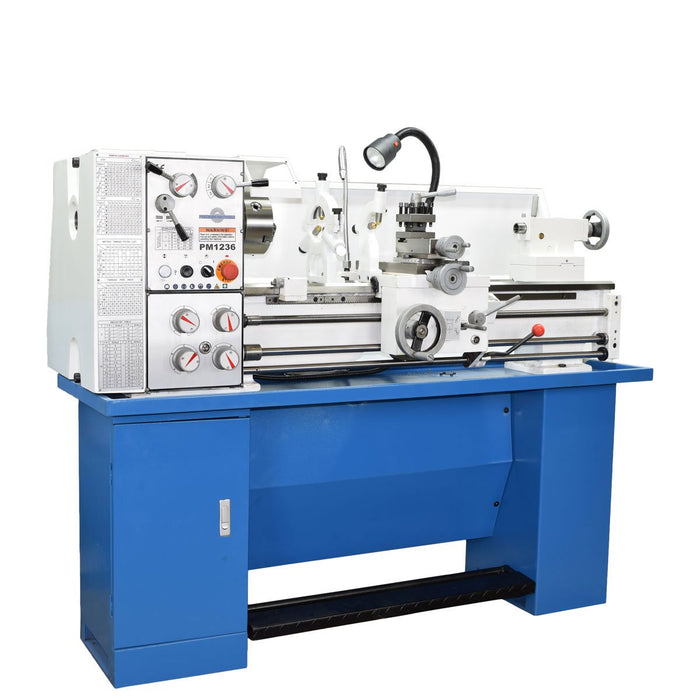

PM-1236 12"x36" Precision Lathe with Stand

PM-1236 Main Features

• D1-4 Camlock Spindle Mount for quick chuck changes
• Feed Rod Clutch is now standard, to allow Micro Carriage Stop use with feed, and extra safety safety margin in case of overloading
• Many Accessories Included as Standard, see list to compare with other lathes in this size range
• LED Work Light Available
• Base Is Included - NEW Cast Iron Base Upgrade available, gain extra rigidity and vibration dampening with this option
• Inch and Metric Reading Dials are standard
• Wide Speed Range, 18 Steps from 65-1810 RPM
• Induction Hardened and Ground Ways and Gears, for Extremely Long Service Life
• High Precision, Adjustable Tapered Roller Bearings Used on the Spindle, Ball Bearings Used on All Other Shafts in the Headstock
• Best Available Threading/Feedbox Design, In an oil bath, for Easier, More Reliable Feed/Thread Changes, and Much Longer Life
• Geared Head for Easy and Quick Speed Changes
• 3 Year Warranty



PM-1236 Package Options

#1 PM-1236 Standard Package (PM-1236-Std Package)

• 6" 3 Jaw Chuck with Inside and Outside Jaws
• 8" 4 Jaw Chuck with Reversible Jaws
• 10" Face Plate
• Steady Rest
• Follow Rest
• Back Splash Guard
• Inch and Metric Threading Capability
• Thread Chasing Dial
• Complete Steel Base with Chip Pan
• 4 Way Tool Post
• Dead Centers
• 3 Year Warranty

---

#2 PM-1236 Preferred Package (PM-1236 Preferred Package)

Includes everything as listed above in the #1 Standard Package, plus:

• Wedge Type Quick Change Tool Post Set with 5 Holders, (This set is BXA / 200 Size)
• Clutch on Feed Rod, for use with Micrometer Carriage Stop *NEW*
• Micrometer Carriage Stop
• Foot Brake
• Coolant System
• L.E.D. Work Light - No more bulbs to change!

---

#3 PM-1236 Preferred Package With DRO (PM-1236 Preferred Package w/DRO Installed)

Includes everything in #1 and #2 above, PLUS:

• 2 axis Digital Readout, Installed on the machine (Optional DRO Pictured below)

All machines above also available with an upgraded Cast Iron Base option. This adds approx. 150 pounds compared with the standard steel base, for better vibration dampening and better rigidity. Please see accessory list above to select this option.

Additional Specifications

• Spindle O.D. at outboard end, approx. 1.885"

All small accessories ordered with machine ship at no extra charge!

Machine ships LTL Truck Freight at a flat rate of $399 in the 48 States. Shipments to Hawaii, Alaska, Puerto Rico, or internationally need to be quoted by our Sales Team.

Shipping dimensions: Lathe Crate - 66"L x 30"W x 30"H

Ships on a pallet that is 72"L x 32"W" x 6"H (for protection, and easy handling with a pallet jack)

Stands are banded to the top of the lathe crate and add an additional 14" to the lathe crate and pallet height, for a total height of 50".

Total shipping dimensions of the lathe crate with stand banded together atop it's shipping pallet is 72"L x 32"W x 50"H.

Stands can easily be removed from the top of the crate when received by cutting the banding with steel banding cutters or sheet metal shears if needed for a total crate height of 36"(For example, to haul in a pick up truck with a cap which has less than 50" height)

Flat Rate Shipping

Standard Flat Rate LTL Freight Shipping services involve a 28′-48′ tractor trailer pulling up in front of your driveway and unloading your order at the curb. This is the extent of our flat rate shipping services. Carriers will NOT back their truck up your driveway, drive their truck down a dead end street, or use their liftgate to offload your machine into the bed of your pickup or trailer. Unless you have a loading dock, forklift, material handler, or other heavy equipment with forks, you will need to add Liftgate Service for $79.

Liftgate Service (Optional)

Liftgate Delivery service will get the machine from the back of the carriers truck down to the ground and up to 25' from that offloading point, provided those 25' are paved, level, and manageable by a single person with an unpowered pallet jack. If your shop/garage threshold is more than 25' from the curb end of your driveway and you don't have your own pallet jack, you will need to add Inside Delivery Service.

You MUST have a plan for how to get your machine from the curb to your shop. If you need additional delivery services, like Inside Delivery, box truck, or flatbed with forklift delivery (available in select locations), please contact us prior to your order being shipped to allow us to arrange and charge shipping accordingly. Some, but not all carriers and locations have 26′ box trucks available, but that is not guaranteed and your delivery plan should not depend on getting a box truck.

Inside Delivery Service (Optional)

The Inside Delivery option will, in appropriate situations, cause the driver to take your freight from the offloading point at the liftgate and move it into your shop or garage, as long as the route between those two points is relatively level, paved, and manageable using a standard pallet jack. This is for flat, paved driveways that are over ~30' from the curb to the threshold of your shop/garage.

Delivery Appointment

If you need the freight carrier to call you to schedule a delivery appointment after the machine arrives at their final terminal, but before attempting delivery of your machine, you will need to request a Delivery Appointment. This is most useful if/when you need to rent a forklift or take off work. This will add 1 day to your shipping time. Scheduling a Delivery Appointment more than 2 days from the date the freight arrives at your local terminal may incur daily storages charges that the customer will be responsible for.

Click Here for PM-1236 Manual:  PM 1236 V9 2022 7

Click Here for optional DRO Manual: PM Lathe DRO Manual 7-30-2019 V.1

Click Here for optional DRO Setup: Setting Up Precision Matthews Lathe DRO

Please click here for wiring instructions / installing Baldor Motor on PM-1236 Lathe: PM 1236 Baldor Upgrade Motor Wiring
