PM 2 Axis Lathe DRO, LCD Display, 6x28 (.0001 Hi Res Cross Scale)

PM 2 Axis Lathe DRO, LCD Display, 6x28 (.0001 Hi Res Cross Scale)

$699.99 - $699.99
$699.99
$699.99 - $699.99
$699.99
  • The Precision Matthews 2 axis Lathe DRO is a LCD/Graphic Display DRO, housed in a compact, slim, high performance plastic case
  • Fully loaded with all the features you would expect
  • .0001" High Resolution Cross Slide Scale, (Supplied in a slim size for much easier fit on a lathe cross slide)
  • It is the ideal DRO for a cost effective solution without compromising on performance
  • Scale Sizing shown below under Description
  • Covered by a 3 year warranty
Availability:
In stock

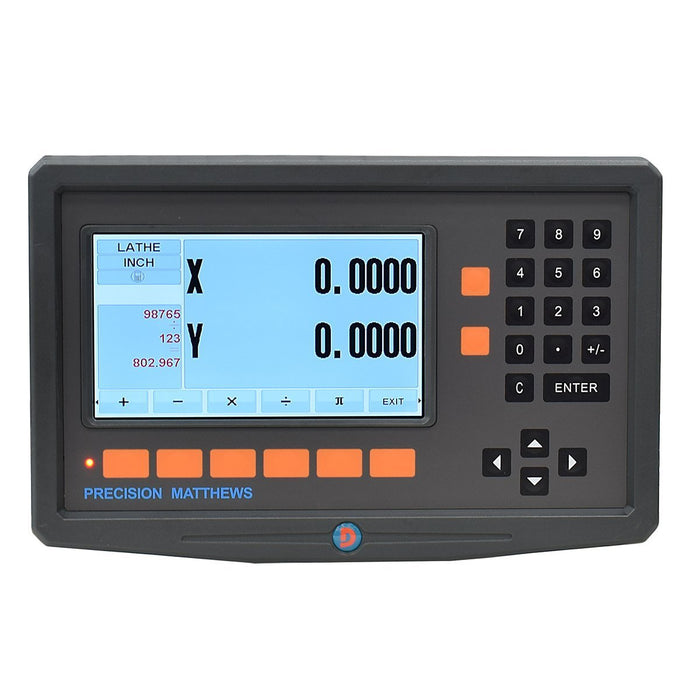

This Precision Matthews LCD/Graphic DRO is a dedicated Lathe specific digital readout housed in a compact, slim, high performance plastic case.
Fully loaded with all the features you would expect including. It is the ideal DRO for a cost effective solution without compromising on performance.

  • Bright LCD/Graphic Display for easier visibility
  • Optical Glass encoders (Scales), Hi Res .0001" Cross Scale Resolution, and .0002” Bed Scale Resolution
  • Cost effective, easy to use design

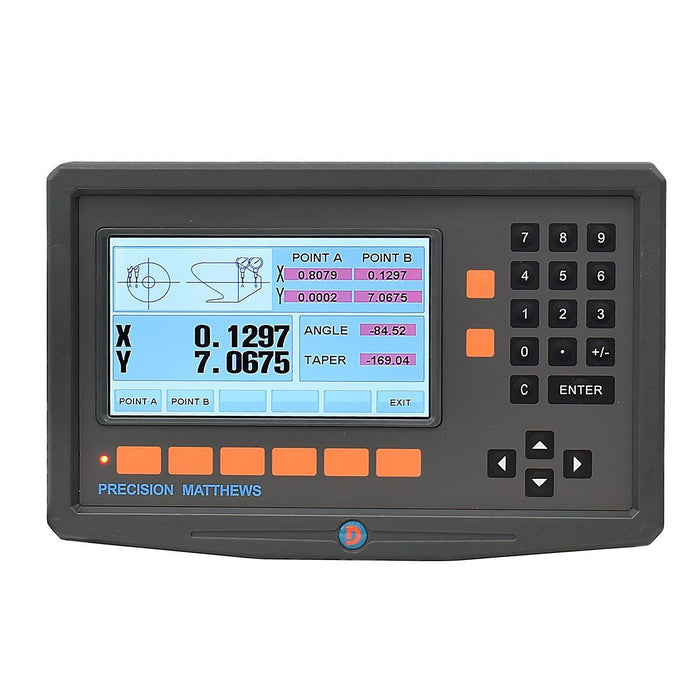

  • Taper Function
  • Calculator

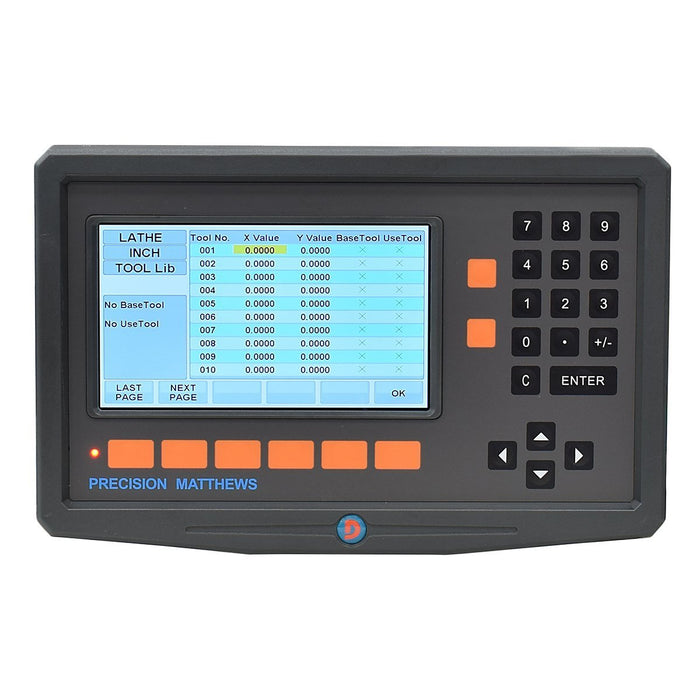

  • Tool Offsets

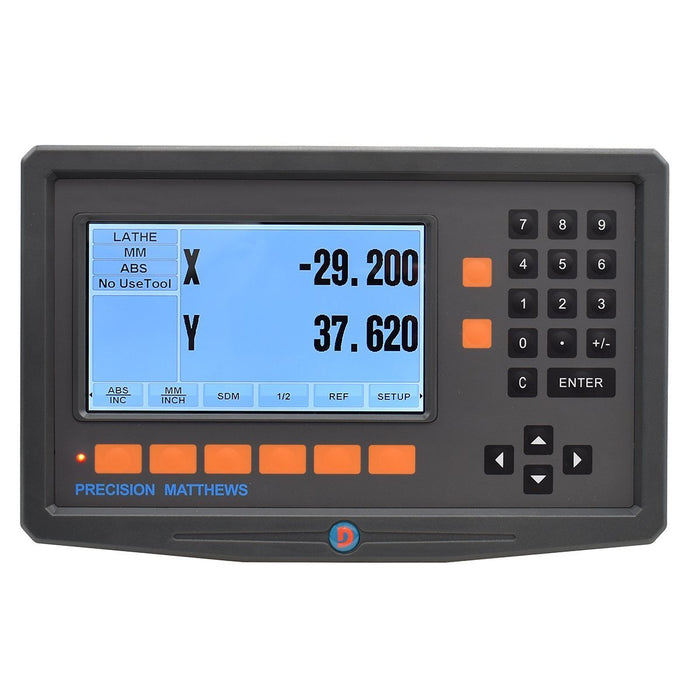

  • Inch/MM
  • Radius/Diameter
  • ABS/INC
  • Bright clear wide-viewing angle display
  • Wipe clean membrane keypad allows easy cleanup
  • 3 Year Warranty

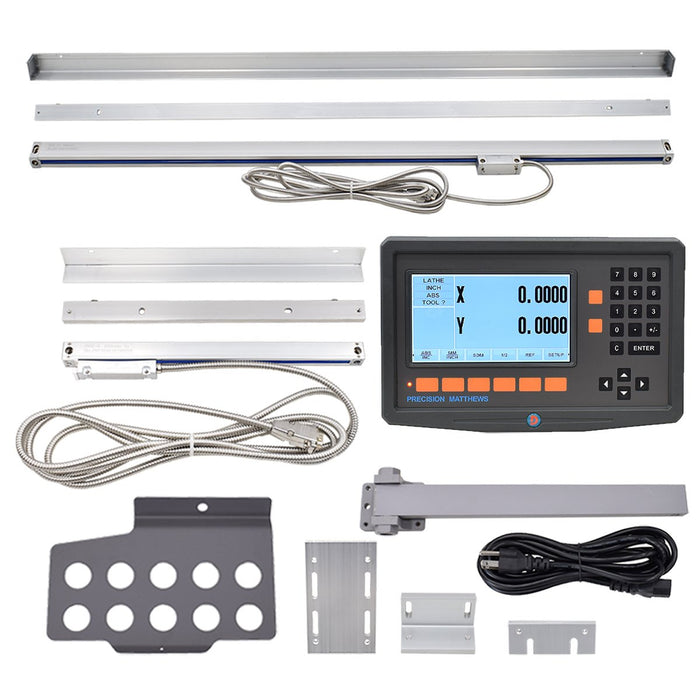

Precision Matthews LCD/Graphic DRO Set for Lathes, 2 axis, 6"x28" Travels, this set is complete with:
1. LCD Graphic DRO Display, 2 axis, for Lathes, with Mounting Bracket, and 110V Power Cord
2. 150mm Slim Cross Slide Scale, .0001" Resolution (Slim scale to fit most any lathe cross slide)
3. 700mm Bed Scale, .0002" Resolution
4. Bracket/Hardware Set for installation

Main Specifications

Accessory Type
General category that best fits this product
DRO Kits
Machine Compatibility
What types of Precision Matthews machines is this accessory compatible with?
Lathes

Travels

Table

DRO Specifications

Display Type Graphical
DRO Number of Axis
How many axes does this DRO read?
2 Axis
Magnetic vs Optical DRO type
What type of scales are used with this DRO kit?
Optical Scales

Power Requirements

Motor and Drive

Cutting Capacities

Unit Dimensions

Unit Length
Length of product in packaging, in inches
49 in
Unit Width
Width of product in packaging, in inches
14 in
Unit Height
Height of product in packaging, in inches
6 in
Unit Weight
Gross Weight of product in packaging, in lbs
15 lb

Shipping Information

Shipping Length
Length of longest dimension of shipping skid or shipping box, in inches.
49 in
Shipping Width
Width of shipping skid or 2nd longest dimension of shipping box, in inches.
14 in
Shipping Height
Height of shipment on skid, or 3rd longest dimension of shipping box, in inches.
6 in
Shipping Weight
Approximate shipping weight when crated, palletized, or boxed up and ready to ship, in lbs.
15 lb

Machine Footprint

Flat Rate Shipping of $49.99 anywhere in the 48 US States (Ships by UPS Ground)
Click here for DRO Manual: PM LCD Lathe DRO V1 10 3 23
