Wedge Quick Change Tool Post Set, AXA Size

Wedge Quick Change Tool Post Set, AXA Size

$169.99 - $169.99
$169.99
$169.99 - $169.99
$169.99
  • All steel construction
  • Wedge locking provides the best in repeatability and holding power
  • Quick and easy height adjustments
  • Fast changes between tools
  • Universal design fits many lathes
  • See Description below for sizing
  • 5 year warranty
Availability:
In stock

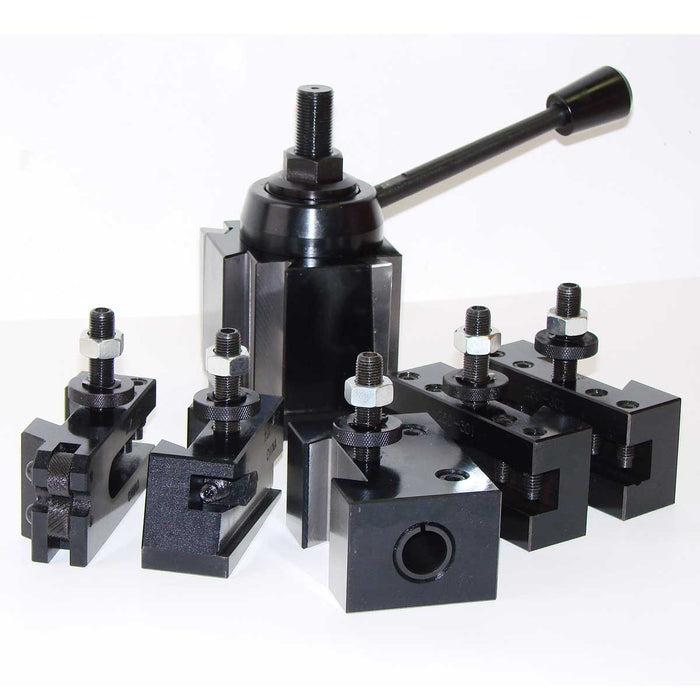

Quick Change Toolpost Set, Wedge Type #100 (AXA) with 5 holders:

  1. (1) 250-101 Straight Holder, 1/4-1/2" Capacity
  2. (1) 250-102 Straight w/V Groove for straight OR round tools, 1/4-1/2" Capacity
  3. (1) 250-141 H.D. Boring Holder, 5/8" Capacity
  4. (1) 250-110 Knurling / Facing Holder
  5. (1) 250-107 Parting Holder, Uses 1/2" Tall Parting Blades

Sizing:

(This tool post will generally fit lathes from 10" to 12" Swing, please check carefully as shown below)

Measure from the top of your compound slide, where the tool post sits, to the centerline of the spindle/work piece (Using a center in the tailstock to find this is normally the easiest way) For this AXA Tool Post Set, you will need a minimum of 1" from that measurement, up to a maximum of about 1-3/4". If it is more than this 1-3/4", you want to use a larger tool post to fit it properly.

Dimensions Below for standard straight tool holder to help with sizing:

  • A: 15/16"
  • B: 1/2" (This is where the cutting tool fits)
  • C: 7/16"
  • D: 1-1/2"

Main Specifications

Accessory Type
General category that best fits this product
Quick Change Tool Posts and Holders
Machine Compatibility
What types of Precision Matthews machines is this accessory compatible with?
Lathes

Travels

Table

DRO Specifications

Power Requirements

Motor and Drive

Cutting Capacities

Unit Dimensions

Unit Length
Length of product in packaging, in inches
8 in
Unit Width
Width of product in packaging, in inches
6.25 in
Unit Height
Height of product in packaging, in inches
4 in
Unit Weight
Gross Weight of product in packaging, in lbs
11.5 lb

Shipping Information

Shipping Length
Length of longest dimension of shipping skid or shipping box, in inches.
11 in
Shipping Width
Width of shipping skid or 2nd longest dimension of shipping box, in inches.
7 in
Shipping Height
Height of shipment on skid, or 3rd longest dimension of shipping box, in inches.
5 in
Shipping Weight
Approximate shipping weight when crated, palletized, or boxed up and ready to ship, in lbs.
11.5 lb

Machine Footprint

Flat rate of $15.99 shipping anywhere in the 48 States
