PM-949TS / PM-949TV 9x49 Knee Milling Machine

PM-949TS / PM-949TV 9x49 Knee Milling Machine

$8,399.00 - $8,999.00
$8,999.00
$8,399.00 - $8,999.00
$8,999.00
  • Ultra High Quality Milling Machine, 100% Made in Taiwan. Top Of The Line Machine Without Question
  • Built For Those Users Who Do Not Want To Sacrifice Quality
  • Full Featured Head, With Power Feed On Quill For Boring Operations, Etc.
  • Turcite B Way Coating, Provides Very Smooth Movements In Table, and Longer Life
  • High Grade Meehanite Castings Used Throughout Machine
  • Industry Leading 5 YEAR WARRANTY
  • More Details
$799 Flat Rate Shipping in the 48 US States – Any accessories ordered with machine at the same time also ship free of charge! (Will automatically calculate at checkout)
Availability:
Available on Backorder
Availability:
In stock
Availability:
Available on Backorder

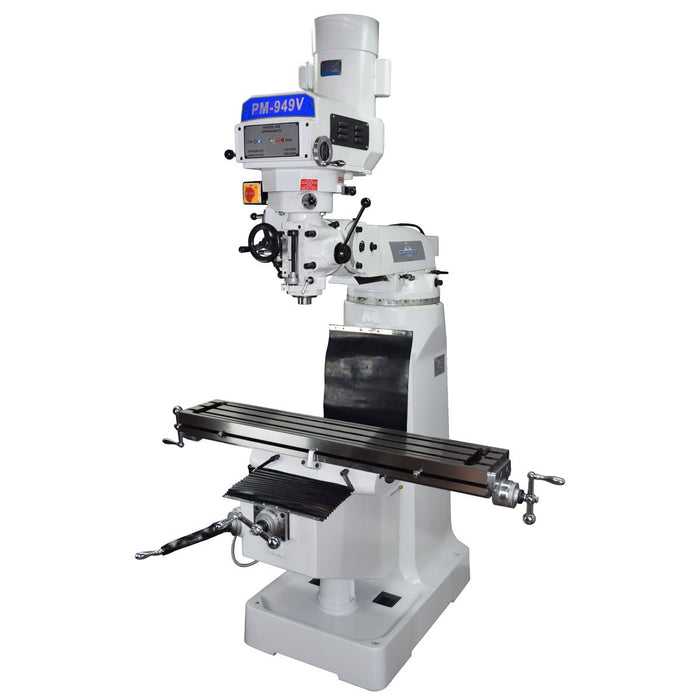

Model PM-949TS and PM-949TV High Precision Vertical Knee Type Milling Machines

Typical Users:

  • Industrial users looking for a top quality, full featured vertical knee type milling machine, built for industrial use
  • High end gunsmiths looking for the quality and features of a full sized, high quality knee mill
  • Users who appreciate a high end, full featured knee type milling machine with the space saving characteristics this offers, built for every day, professional use
  • Any other users who can appreciate a top quality machine with full features and no shortcuts, at a very reasonable price for the level of quality that you are purchasing

Main High Quality Features:

  • High Grade Meehanite Castings
  • Head Swivels Left and Right, AND Tilts Front To Back
  • Turcite B way material for smoother table movements
  • Hardened and Ground table and way surfaces greatly reduces wear, which maintains accuracy, and greatly extends machine life
  • One Shot Lubrication system is standard equipment, which also extends machine life, and reduces oiling times of all way surfaces and lead screws to seconds, it is accomplished by simply pumping a lever
  • High precision Inch Pitch lead screws, for ease of use and greater accuracy (5TPI Screws)
  • High Precision Spindle with +/- .0001” or less runout for greater tool life and accuracy
  • Balanced pulleys in head for smooth and quiet operation
  • Full featured head with automatic quill feeds in 3 steps for boring operations
  • Precision Honed Quill Bore for tighter tolerance fit, which leads to improved accuracy when drilling and precision boring
  • The Quill is Precision Ground, then Hard Chrome Plated for longer life
  • Available with either step pulley speed changes, or variable speeds to suit the user's preferences
  • Built in coolant sump in machine base
  • Tolerance Test Certificate included, each machine is checked for accuracy through a careful inspection process before shipment, the customer can always be sure they will receive a top quality machine that exceeds their expectations
  • Longest in class 5 YEAR WARRANTY against defective parts, including electrical (excludes normal wear items such as belts, bushings, etc)

Additional Specifications:

  • Thread Pitch of holes in machine base (For leveling pads): 3/4"-10

Main Specifications

Milling Machine Type Knee Mills
Leadscrew Type Precision Ground ACME Leadscrew W/ Backlash Adjustments on X and Y Axis
Drawbar Thread
Diameter and Thread of drawbar
7/16-20
Spindle Height
Spindle height from base/floor, or chiptray/bench for bench models without stand, in inches
50.5 in
Spindle Taper
Taper of the spindle
R8
Spindle to Table Maximum
Maximum distance between spindle face and table, in inches.
18.2 in
Spindle to Table Minimum
Minimum distance between spindle face and table, in inches.
2 in
Runout +/-
-
0.0001
Spindle Bearing Class C7
Spindle Bearing Type High Precision Angular Contact Bearings, Fully Adjustable
Table Dial Graduations 0.001"
Table Leadscrew Pitch
Number of Turns to move table 1"
5 TPI (0.200" per turn)

Travels

Mill X-Axis Travel
Maximum Left to Right travel distance along X-axis, in inches
34 in
Mill X-Axis Travel, with X-Axis Power Feed Installed
Maximum Left to Right travel distance along X-axis with power feed installed, in inches
32 in
Mill Y-Axis Travel
Maximum Front to Back travel distance along Y-axis, in inches
13 in
Mill Z-Axis Travel
Maximum Down-to-Up travel distance along Z-axis, in inches.
16.2 in
Quill Travel
Maximum extension of quill, in inches.
5 in

Table

X-Axis Table Length
X-axis table length, left-to-right, in inches.
49 in
Y-Axis Table Width
Y-axis table width, in inches.
9 in
T-slot size
Table T-Slot Size, in inches and metric
5/8", 16mm
Spacing between T Slots
Center-on-center distance between T Slots, in inches.
2.5"
Number of T Slots
Number of T Slots in the table
3
Table Height Minimum
Table height from floor when fully lowered, in inches.
33 in
Table Height Maximum
Table height from floor when fully raised, in inches.
49.2 in

DRO Specifications

Power Requirements

Amperage
Minimum Breaker/Circuit/Outlet size required for product
20
Voltage
Voltage Rating
220V
Phase
Phase type of line power supply
3Φ , 1Φ
Power Frequency
Power line frequency compatibility, in Hz
60Hz
Horsepower
Power output of motor, in HP
3
Plug supplied
Type of electrical plug or connection
~5' Cord for direct wire or user supplied plug

Motor and Drive

Motor Type
Type of Motor
AC
Drive Type
Drive mechanism to transfer motor power to spindle
Belt Drive
Speed Adjustment
How the speed is adjusted.
Infinitely Variable , Stepped
Spindle Minimum Speed
Minimum Speed of the Spindle, in RPM
60 , 80
Spindle Maximum Speed
Maximum Speed of the Spindle, in RPM
4,200 , 2,720

Cutting Capacities

Unit Dimensions

Unit Length
Length of product in packaging, in inches
66 in
Unit Width
Width of product in packaging, in inches
66 in
Unit Height
Height of product in packaging, in inches
72 in
Unit Weight
Gross Weight of product in packaging, in lbs
2300 lb

Shipping Information

Shipping Length
Length of longest dimension of shipping skid or shipping box, in inches.
66 in
Shipping Width
Width of shipping skid or 2nd longest dimension of shipping box, in inches.
66 in
Shipping Height
Height of shipment on skid, or 3rd longest dimension of shipping box, in inches.
72 in
Shipping Weight
Approximate shipping weight when crated, palletized, or boxed up and ready to ship, in lbs.
2500 lb
Shipping Class
Parcel, Freight, Flat Rate shipping class
SC-F50E
Liftgate Eligible
Is this product suitable or eligible for Liftgate Delivery Service?
No
HS Code
Harmonized System Code for customs and tariffs
8459.59
Country of Origin
Primary Country of Manufacturing Origin
Taiwan

Machine Footprint

Footprint Depth
Minimum Front-to-Back space needed for clearance of machine, in inches
50 in
Footprint Width X-Axis
Minimum Left-to-Right space needed for clearance of machine, in inches.
60 in
Footprint Height
Minimum floor-to-ceiling space for clearance of machine, in inches.
89 in
All small accessories ordered with machine ship at no extra charge!

Machine ships LTL Truck Freight at a flat rate of $799 in the 48 States. Shipments to Hawaii, Alaska, Puerto Rico, or internationally need to be quoted by our Sales Team.

This mill ships crated, crate measures 66"L x 66"W x 65"H (Head ships Flipped Upside Down To Lower Overall Height)

Liftgate Service is NOT available for this machine. This will need to be shipped to a place with a loading dock, or unloaded from the truck with a forklift.
