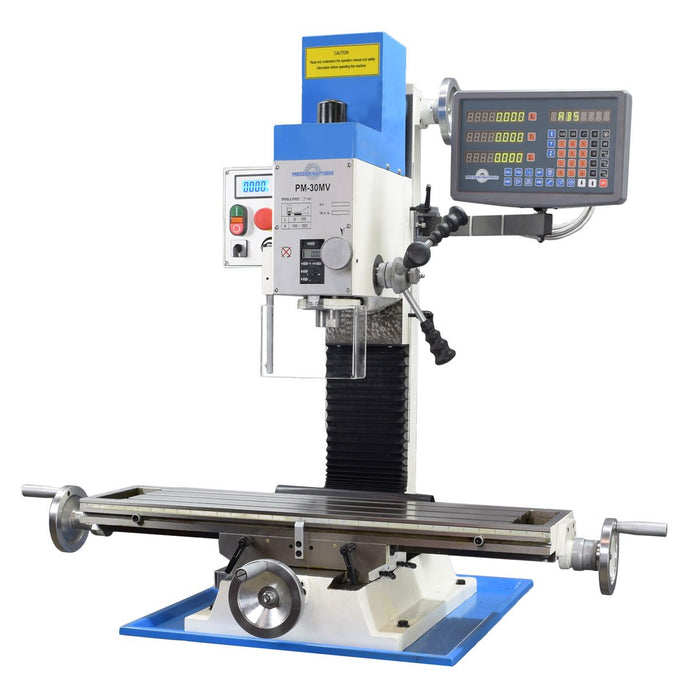

PM-30MV Milling Machine

PM-30MV Milling Machine

$2,999.00 - $3,699.00
$2,999.00
$2,999.00 - $3,699.00
$2,999.00
  • Extremely Reliable, Brushless DC Variable Speed Motor Included Standard
  • Belt Drive Design, For Smoother, Quieter Running
  • Extra Large Column To Base Mount
  • 3 Bolt Head to Column Mount is Standard, Also For Increased Rigidity
  • Larger Dials at Table Ends, Graduated in .001”, For Easier Reading,  And More Accurate Table Movements
  • Leadscrews Are True Inch Pitch Screws (Not Metric Conversions Like Many), 10 Threads Per Inch (.100” Per Turn)
  • Machine Carries A 3 Year Warranty For Added Peace Of Mind
  • More Information below under the DESCRIPTION Tab below - It is NOT just the same old model with just a belt drive upgrade - Be sure to compare carefully
  • More Details
$249 Flat Rate Shipping in the 48 US States – Any accessories ordered with machine at the same time also ship free of charge! (Will automatically calculate at checkout)
Availability:
In stock
Availability:
Available on Backorder

PM-30MV Main Features

Special Features that set this mill apart from others (BE SURE TO COMPARE THESE DIFFERENCES):
  • MUCH Larger Travels and work area
  • Quill DRO Included Standard (This is for the spindle up/down movement)
  • 3 Bolt Head Mount is now standard (where the head mounts to the Z Axis), for more rigidity when milling - Much improved over the single bolt mount type
  • Main Z Axis Column is attached to the base with 4 bolts, and mounted from the top, with a wide, proper mounting surface for much more rigidity over other models in this size range
  • 0.001" Readings with larger dials on the X and Y axis, with true 10 Thread Per Inch Leadscrews make it easier to cut accurately - (One line on the dial is 0.001", one full turn of the handwheel is 0.100", much easier to use than those with odd metric conversions)
  • 50-3000 RPM variable speed with the turn of a knob, properly set up with Low and High for a wider speed range, and plenty of power at lower speeds
  • Precision ground ways for smoother movements - Not just rough milled
  • Thrust Bearings in leadscrew ends - not bushings - Much smoother movements and less backlash
  • Split nuts on X and Y Axis to allow for backlash adjustment
  • DC BRUSHLESS MOTOR, Variable Speed, POWERFUL, SMOOTH, and RELIABLE Belt Drive from Motor to Spindle runs MUCH quieter than others, and eliminates any failure prone plastic gears (And the hassle of changing them when stripped)
  • 3 Year Warranty, for added peace of mind

PM-30MV Standard Equipment

  • PM-30MV Milling Machine
  • Chip Tray
  • Variable Speed with Belt Drive and Brushless DC Motor
  • Way Cover Set
  • Drawbar
  • R8 Spindle Tape
  • Quill/Spindle Depth DRO
  • Spindle Locking Wrench

PM-30MV Optional Accessories

  • Stand
  • 3 Axis DRO Installed Note: if a 3 axis DRO is added to the machine, the 3rd axis of the DRO reads the HEAD up and down, Not the quill, so it is not doubling up on the measurement. If you add the 3 axis DRO, now both Z Axis movements are covered)

Optional DRO is now our PM LCD DRO as shown here:

Additional Specifications

  • Bolt Pattern, Machine Base Mounting Holes: APPROX. 13-1/8”W x 15” Front to back, with 1/2" Holes. (we recommend waiting until your machine arrives before drilling any mounting holes in case this varies)
  • Table Surface Height (On Stand): 36" (with base w/leveling feet 40")

(These links below are 3rd party links, please do not contact us with questions or support as we are not affiliated with them. Contact the vendors directly for fit, pricing, availability, technical questions, etc. These links are only for your reference, all vendors are responsible for their own products below)

Power Head Lift, Power Drawbar, Spindle Brake and Quill Stop, Videos Below, More Info Here: Priest Tools PM-30MV aftermarket accessories

Z Axis power lift motor kit: Power Lift with Enclosure

Power Drawbar: https://youtu.be/p-or4qxVYeY

Spindle Brake and Quill Stop, https://youtu.be/VdCIo8lRSSU

CNC Conversion Kit Info and Links Below:

Arizona Video: Arizona Video CNC Kits

Procut CNC: Pro Cut CNC

Main Specifications

Milling Machine Type Bench Type Mills
Headstock Tilt, Left to Right ±90°
Drawbar Thread
Diameter and Thread of drawbar
7/16-20
Spindle Taper
Taper of the spindle
R8
Spindle to Table Maximum
Maximum distance between spindle face and table, in inches.
17 in
PM Stand Height
Height of Precision Matthews Stand
32"
Table Dial Graduations 0.001"
Table Leadscrew Pitch
Number of Turns to move table 1"
10 TPI (0.100" per turn)

Travels

Mill X-Axis Travel
Maximum Left to Right travel distance along X-axis, in inches
23 in
Mill Y-Axis Travel
Maximum Front to Back travel distance along Y-axis, in inches
8.75 in
Mill Z-Axis Travel
Maximum Down-to-Up travel distance along Z-axis, in inches.
14 in
Quill Travel
Maximum extension of quill, in inches.
3 in

Table

X-Axis Table Length
X-axis table length, left-to-right, in inches.
33 in
Y-Axis Table Width
Y-axis table width, in inches.
8.25 in
T-slot size
Table T-Slot Size, in inches and metric
9/16", 14mm

DRO Specifications

Power Requirements

Amperage
Minimum Breaker/Circuit/Outlet size required for product
10
Voltage
Voltage Rating
220V
Phase
Phase type of line power supply
1Φ
Power Frequency
Power line frequency compatibility, in Hz
60Hz
Horsepower
Power output of motor, in HP
2

Motor and Drive

Motor Type
Type of Motor
DC Brushless
Drive Type
Drive mechanism to transfer motor power to spindle
Belt Drive
Speed Adjustment
How the speed is adjusted.
Infinitely Variable
Spindle Minimum Speed
Minimum Speed of the Spindle, in RPM
50
Spindle Maximum Speed
Maximum Speed of the Spindle, in RPM
3,000

Cutting Capacities

Max Drilling Capacity 1.25"
Max End Milling Capacity 0.75"
Max Face Milling Capacity 3.5"

Unit Dimensions

Unit Length
Length of product in packaging, in inches
30 in
Unit Width
Width of product in packaging, in inches
39 in
Unit Height
Height of product in packaging, in inches
39 in
Unit Weight
Gross Weight of product in packaging, in lbs
586 lb

Shipping Information

Shipping Length
Length of longest dimension of shipping skid or shipping box, in inches.
44 in
Shipping Width
Width of shipping skid or 2nd longest dimension of shipping box, in inches.
34 in
Shipping Height
Height of shipment on skid, or 3rd longest dimension of shipping box, in inches.
49 in
Shipping Weight
Approximate shipping weight when crated, palletized, or boxed up and ready to ship, in lbs.
586 lb
Shipping Class
Parcel, Freight, Flat Rate shipping class
SC-F25LE
Liftgate Eligible
Is this product suitable or eligible for Liftgate Delivery Service?
Yes
HS Code
Harmonized System Code for customs and tariffs
8459.69
Country of Origin
Primary Country of Manufacturing Origin
China

Machine Footprint

Footprint Depth
Minimum Front-to-Back space needed for clearance of machine, in inches
31 in
Footprint Width X-Axis
Minimum Left-to-Right space needed for clearance of machine, in inches.
46.25 in
Footprint Height
Minimum floor-to-ceiling space for clearance of machine, in inches.
48 in
All small accessories ordered with machine ship at no extra charge!

Machine ships LTL Truck Freight at a flat rate of $249 in the 48 States. Shipments to Hawaii, Alaska, Puerto Rico, or internationally need to be quoted by our Sales Team.

PM-30MV Mill Crate is 29.5" Wide x 39" Long x 45" High and ships on a 44"x34" pallet. Crate is 50" Tall on the pallet, and if ordered with a stand, add 16" to the shipping height, total of 66". (Stand is strapped to the top of the main crate when shipped, if ordered with the stand)

Flat Rate Shipping

Standard Flat Rate LTL Freight Shipping services involve a 28′-48′ tractor trailer pulling up in front of your driveway and unloading your order at the curb. This is the extent of our flat rate shipping services. Carriers will NOT back their truck up your driveway, drive their truck down a dead end street, or use their liftgate to offload your machine into the bed of your pickup or trailer. Unless you have a loading dock, forklift, material handler, or other heavy equipment with forks, you will need to add Liftgate Service for $79.

Liftgate Service (Optional)

Liftgate Delivery service will get the machine from the back of the carriers truck down to the ground and up to 25' from that offloading point, provided those 25' are paved, level, and manageable by a single person with an unpowered pallet jack. If your shop/garage threshold is more than 25' from the curb end of your driveway and you don't have your own pallet jack, you will need to add Inside Delivery Service.

You MUST have a plan for how to get your machine from the curb to your shop. If you need additional delivery services, like Inside Delivery, box truck, or flatbed with forklift delivery (available in select locations), please contact us prior to your order being shipped to allow us to arrange and charge shipping accordingly. Some, but not all carriers and locations have 26′ box trucks available, but that is not guaranteed and your delivery plan should not depend on getting a box truck.

Inside Delivery Service (Optional)

The Inside Delivery option will, in appropriate situations, cause the driver to take your freight from the offloading point at the liftgate and move it into your shop or garage, as long as the route between those two points is relatively level, paved, and manageable using a standard pallet jack. This is for flat, paved driveways that are over ~30' from the curb to the threshold of your shop/garage.

Delivery Appointment

If you need the freight carrier to call you to schedule a delivery appointment after the machine arrives at their final terminal, but before attempting delivery of your machine, you will need to request a Delivery Appointment. This is most useful if/when you need to rent a forklift or take off work. This will add 1 day to your shipping time. Scheduling a Delivery Appointment more than 2 days from the date the freight arrives at your local terminal may incur daily storages charges that the customer will be responsible for.

Click here for PM-30MV Manual: PM-30MV Manual v3 10/2020

Click here for optional PM DRO Manual (Pre 2022): PM DRO Manual 1-15-2018

Click here for optional PM DRO Manual  (New LCD Version): LCD Mill DRO V1 10 3 2023

Comparison Charts:

Click Here for PM Bench Mills Comparison

Click Here for a useful document on Choosing And Using A Milling machine

Additional Accessories:

(These links below are 3rd party links, please do not contact us with questions or support as we are not affiliated with them. Contact the vendors directly for fit, pricing, availability, technical questions, etc. These links are only for your reference, all vendors are responsible for their own products below)

Power Head Lift, Power Drawbar, Spindle Brake and Quill Stop, Videos Below, More Info Here: www.priesttools.com

Z Axis power lift motor kit: https://priesttools.com/product/power-lift-precision-matthews-pm-30mv-with-enclosure/

Power Drawbar, https://youtu.be/p-or4qxVYeY

Spindle Brake and Quill Stop, https://youtu.be/VdCIo8lRSSU
