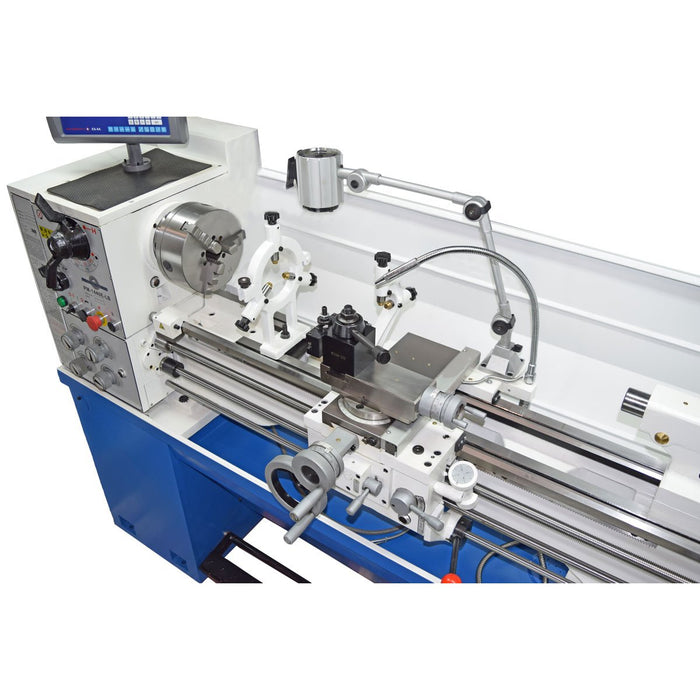

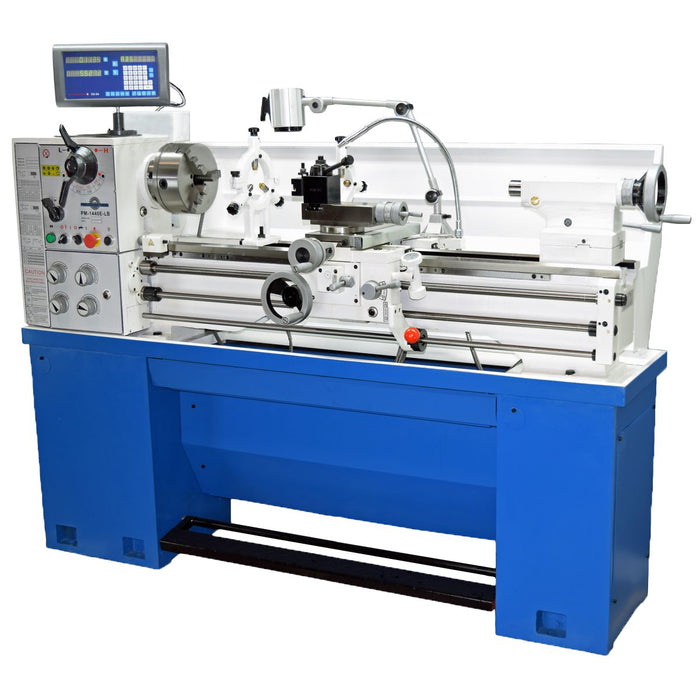

PM-1440E-LB 14"x40" Precision Lathe

PM-1440E-LB 14"x40" Precision Lathe

$7,499.00 - $7,499.00
$7,499.00
$7,499.00 - $7,499.00
$7,499.00
  • 2" Spindle Bore, allows larger work through the headstock
  • DRO, BXA Quick Change Tool Post, Foot Brake, and much more included standard!
  • Cast Iron base for extra rigidity
  • 220V Single Phase Power, no phase converters needed
  • Short spindle length, great for gunsmithing operations through the headstock
  • Priced very, very reasonably when compared with other similar models – And others are lacking the 2" Spindle Bore
  • Leadscrews Are True Inch Pitch Screws (Not Metric Conversions Like Many), 10 Threads Per Inch (.100” Per Turn)
  • Backed by an industry leading 3 year warranty
  • More Details
$499 Flat Rate Shipping in the 48 US States – Any accessories ordered with machine at the same time also ship free of charge! (Will automatically calculate at checkout)
Availability:
Available on Backorder

PM-1440E-LB Standard Accessories

  • 2 Axis DRO, Installed
  • Wedge Type quick change tool post set with 5 holders, BXA Size
  • 2" Spindle Bore!
  • Heavy Cast Iron Base!
  • 8" 3 Jaw Chuck
  • 8" 4 Jaw Chuck
  • Face Plate
  • Steady Rest
  • Follow Rest
  • Coolant System
  • L.E.D. Work Light
  • Inch and Metric Threading Capability
  • Thread Chasing Dial
  • Foot Brake
  • Back Splash Guard
  • 3 year Warranty

Main Specifications

Bed Width
Front-to-back width of lathe bed
7.38 in
Distance Between Centers
Maximum distance between centers
40"
Gap Insert Length
Length of removable gap insert section of lathe bed, in inches
8.75 in
Internal Taper
Internal Taper of the headstock spindle
Internal MT6
Quill Tailstock Taper
Taper of the tailstock quill.
MT4
Spindle Bore Diameter
Diameter of Spindle Bore, maximum diameter of through-spindle workpiece, in inches
2"
Swing over bed
Maximum diameter of workpiece that can clear bed, in inches
14 in
Swing over cross-slide
Maximum diameter of workpiece that can clear the cross-slide, in inches
9 in
Swing over gap
Maximum diameter of workpiece over lathe bed gap, with gap insert removed, in inches.
20 in
Quill Diameter
Diameter of the quill
1.653" (42mm)
Spindle Mount Type
Mounting system for spindle.
D1-5 Camlock

Travels

Compound Travel
Maximum travel of compound (top slide), in inches
3.25 in
Cross-Slide Travel
Maximum pure Y-axis, in-and-out travel of the cross-slide on the saddle, in inches.
7 in
Quill Travel
Maximum extension of quill, in inches.
4 in

Table

DRO Specifications

Power Requirements

Amperage
Minimum Breaker/Circuit/Outlet size required for product
15
Voltage
Voltage Rating
220V
Phase
Phase type of line power supply
1Φ
Power Frequency
Power line frequency compatibility, in Hz
60Hz
Horsepower
Power output of motor, in HP
3
Plug supplied
Type of electrical plug or connection
~5' Cord for direct wire or user supplied plug

Motor and Drive

Motor Type
Type of Motor
AC
Drive Type
Drive mechanism to transfer motor power to spindle
Belt Drive
Speed Adjustment
How the speed is adjusted.
Stepped
Spindle Minimum Speed
Minimum Speed of the Spindle, in RPM
70
Spindle Maximum Speed
Maximum Speed of the Spindle, in RPM
2,000

Cutting Capacities

Longitudinal Feed Rate Range
X-axis, left or right movement of saddle per revolution of spindle, in inches.
0.0013-0.0173 IPR
Cross-slide Feed Rate Range
Y-axis, in or out movement of cross-slide per revolution of spindle, in inches.
0.0005-0.059 IPR
Inch Threads
Thread cutting capability for imperial threads.
Choice of 34, 4-60 TPI
Metric Threads
Threading capability for metric threads
Choice of 26, 0.45-7mm pitch

Unit Dimensions

Unit Length
Length of product in packaging, in inches
76 in
Unit Width
Width of product in packaging, in inches
30 in
Unit Height
Height of product in packaging, in inches
60 in
Unit Weight
Gross Weight of product in packaging, in lbs
1775 lb

Shipping Information

Shipping Length
Length of longest dimension of shipping skid or shipping box, in inches.
78 in
Shipping Width
Width of shipping skid or 2nd longest dimension of shipping box, in inches.
48 in
Shipping Height
Height of shipment on skid, or 3rd longest dimension of shipping box, in inches.
66 in
Shipping Weight
Approximate shipping weight when crated, palletized, or boxed up and ready to ship, in lbs.
1825 lb
Liftgate Eligible
Is this product suitable or eligible for Liftgate Delivery Service?
Yes
HS Code
Harmonized System Code for customs and tariffs
8458.19
Country of Origin
Primary Country of Manufacturing Origin
China

Machine Footprint

Footprint Depth
Minimum Front-to-Back space needed for clearance of machine, in inches
24 in
Footprint Width X-Axis
Minimum Left-to-Right space needed for clearance of machine, in inches.
72 in
All small accessories ordered with machine ship at no extra charge!

Machine ships LTL Truck Freight at a flat rate of $499 in the 48 States. Shipments to Hawaii, Alaska, Puerto Rico, or internationally need to be quoted by our Sales Team.

Shipping weight is approx. 1900 pounds, and ships fully crated on a 78"x46" skid.

Flat Rate Shipping

Standard Flat Rate LTL Freight Shipping services involve a 28′-48′ tractor trailer pulling up in front of your driveway and unloading your order at the curb. This is the extent of our flat rate shipping services. Carriers will NOT back their truck up your driveway, drive their truck down a dead end street, or use their liftgate to offload your machine into the bed of your pickup or trailer. Unless you have a loading dock, forklift, material handler, or other heavy equipment with forks, you will need to add Liftgate Service for $79.

Liftgate Service (Optional)

Liftgate Delivery service will get the machine from the back of the carriers truck down to the ground and up to 25' from that offloading point, provided those 25' are paved, level, and manageable by a single person with an unpowered pallet jack. If your shop/garage threshold is more than 25' from the curb end of your driveway and you don't have your own pallet jack, you will need to add Inside Delivery Service.

You MUST have a plan for how to get your machine from the curb to your shop. If you need additional delivery services, like Inside Delivery, box truck, or flatbed with forklift delivery (available in select locations), please contact us prior to your order being shipped to allow us to arrange and charge shipping accordingly. Some, but not all carriers and locations have 26′ box trucks available, but that is not guaranteed and your delivery plan should not depend on getting a box truck.

Inside Delivery Service (Optional)

The Inside Delivery option will, in appropriate situations, cause the driver to take your freight from the offloading point at the liftgate and move it into your shop or garage, as long as the route between those two points is relatively level, paved, and manageable using a standard pallet jack. This is for flat, paved driveways that are over ~30' from the curb to the threshold of your shop/garage.

Delivery Appointment

If you need the freight carrier to call you to schedule a delivery appointment after the machine arrives at their final terminal, but before attempting delivery of your machine, you will need to request a Delivery Appointment. This is most useful if/when you need to rent a forklift or take off work. This will add 1 day to your shipping time. Scheduling a Delivery Appointment more than 2 days from the date the freight arrives at your local terminal may incur daily storages charges that the customer will be responsible for.
Click here for PM-1440E-LB Manual:  PM 1440E Manual V3
