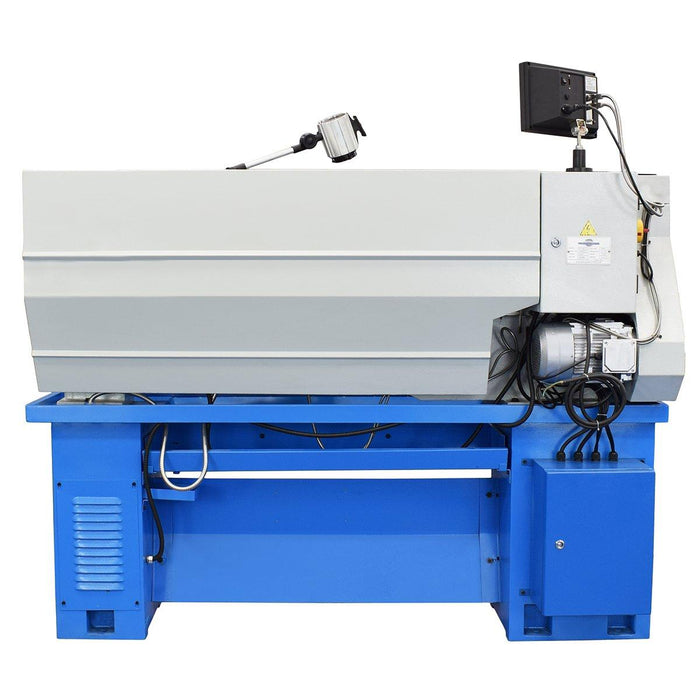

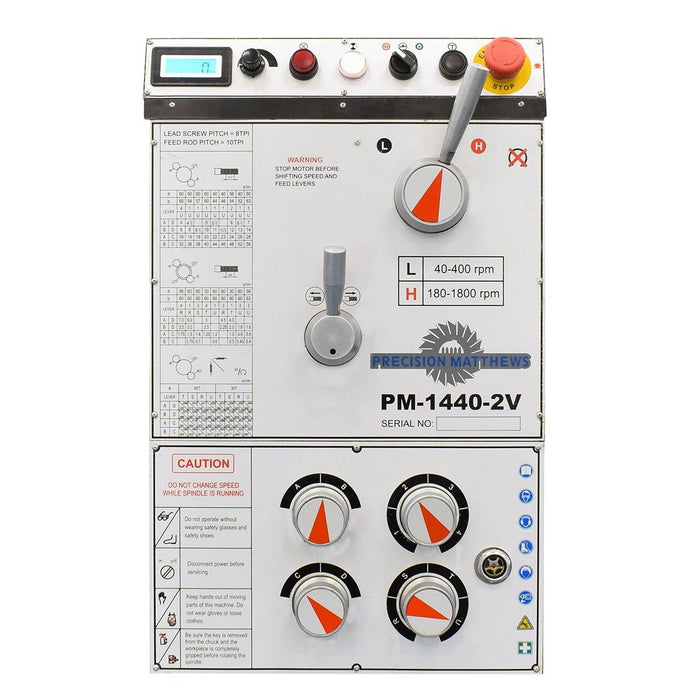

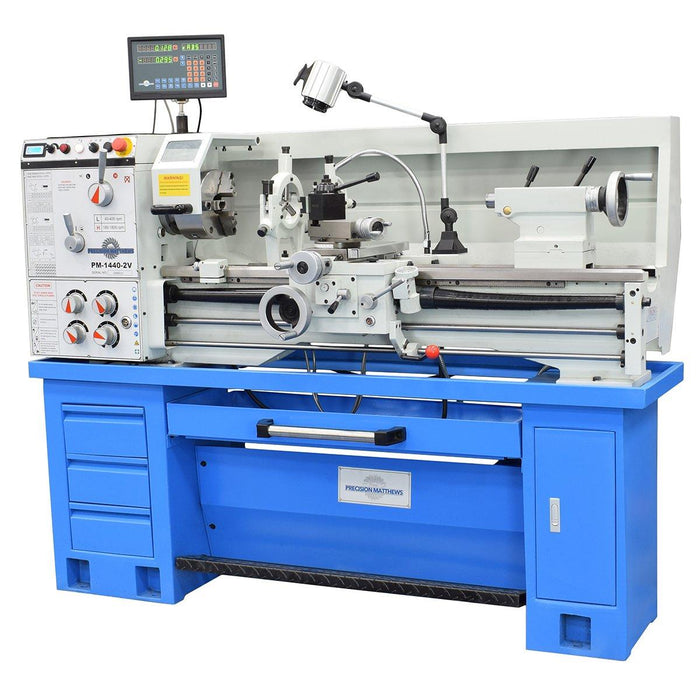

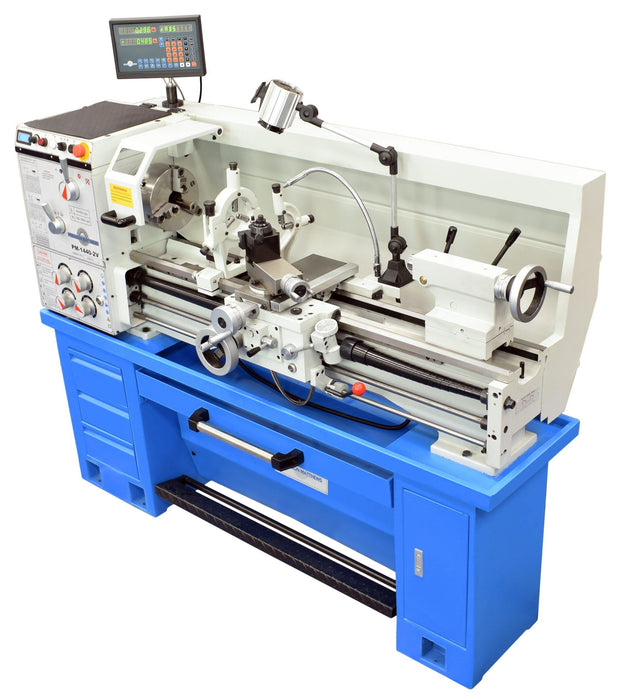

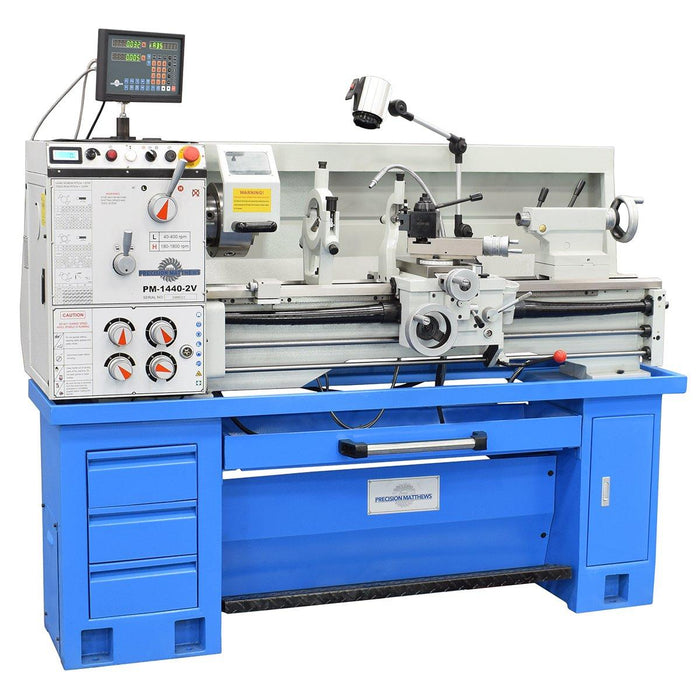

PM-1440-2V 14"x40" Precision Lathe

PM-1440-2V Main Features

• 2" Spindle Bore, allows larger work through the headstock
• Variable Speed - Change speeds while running to dial in for the best surface finish
• DRO, Quick Change Tool Post, Foot Brake, and much more included standard!
• Cast Iron base for extra rigidity
• 240V Single Phase Power, no phase converters needed
• Short spindle length, 16-1/2", great for gunsmithing operations through the headstock
• Priced very, very reasonably when compared with other similar models – And others are lacking the 2" Spindle Bore, DRO, Wedge Type Tool Post, Cast Iron Base, and much more
• Leadscrews Are True Inch Pitch Screws (Not Metric Conversions Like Many) - Cross Slide, Compound, Tailstock are 10 Threads Per Inch (.100” Per Turn), Main leadscrew used for threading is 8 TPI
• Backed by an industry leading 3 year warranty

PM-1440-2V Standard Accessories

• 2 Axis DRO Comes Standard
• Variable Spindle Speeds, from 40-1800 RPM
• Wedge Type quick change tool post set with 5 holders
• 2" Spindle Bore!
• Heavier Cast Iron Base, with storage drawers
• 8" 3 Jaw Chuck
• 8" 4 Jaw Chuck
• Face Plate
• Steady Rest
• Follow Rest
• Coolant System
• L.E.D. Work Light
• Inch and Metric Threading Capability
• Thread Chasing Dial
• Foot Brake
• Splash Guard
• 3 year Warranty

All small accessories ordered with machine ship at no extra charge!

Machine ships LTL Truck Freight at a flat rate of $499 in the 48 States. Shipments to Hawaii, Alaska, Puerto Rico, or internationally need to be quoted by our Sales Team.

Shipping weight is approx. 1900 pounds, and ships fully crated on a 78"x46" skid.

Flat Rate Shipping

Standard Flat Rate LTL Freight Shipping services involve a 28′-48′ tractor trailer pulling up in front of your driveway and unloading your order at the curb. This is the extent of our flat rate shipping services. Carriers will NOT back their truck up your driveway, drive their truck down a dead end street, or use their liftgate to offload your machine into the bed of your pickup or trailer. Unless you have a loading dock, forklift, material handler, or other heavy equipment with forks, you will need to add Liftgate Service for $79.

Liftgate Service (Optional)

Liftgate Delivery service will get the machine from the back of the carriers truck down to the ground and up to 25' from that offloading point, provided those 25' are paved, level, and manageable by a single person with an unpowered pallet jack. If your shop/garage threshold is more than 25' from the curb end of your driveway and you don't have your own pallet jack, you will need to add Inside Delivery Service.

You MUST have a plan for how to get your machine from the curb to your shop. If you need additional delivery services, like Inside Delivery, box truck, or flatbed with forklift delivery (available in select locations), please contact us prior to your order being shipped to allow us to arrange and charge shipping accordingly. Some, but not all carriers and locations have 26′ box trucks available, but that is not guaranteed and your delivery plan should not depend on getting a box truck.

Inside Delivery Service (Optional)

The Inside Delivery option will, in appropriate situations, cause the driver to take your freight from the offloading point at the liftgate and move it into your shop or garage, as long as the route between those two points is relatively level, paved, and manageable using a standard pallet jack. This is for flat, paved driveways that are over ~30' from the curb to the threshold of your shop/garage.

Delivery Appointment

If you need the freight carrier to call you to schedule a delivery appointment after the machine arrives at their final terminal, but before attempting delivery of your machine, you will need to request a Delivery Appointment. This is most useful if/when you need to rent a forklift or take off work. This will add 1 day to your shipping time. Scheduling a Delivery Appointment more than 2 days from the date the freight arrives at your local terminal may incur daily storages charges that the customer will be responsible for.

Click here for PM-1440-2V Manual: Coming Soon.
