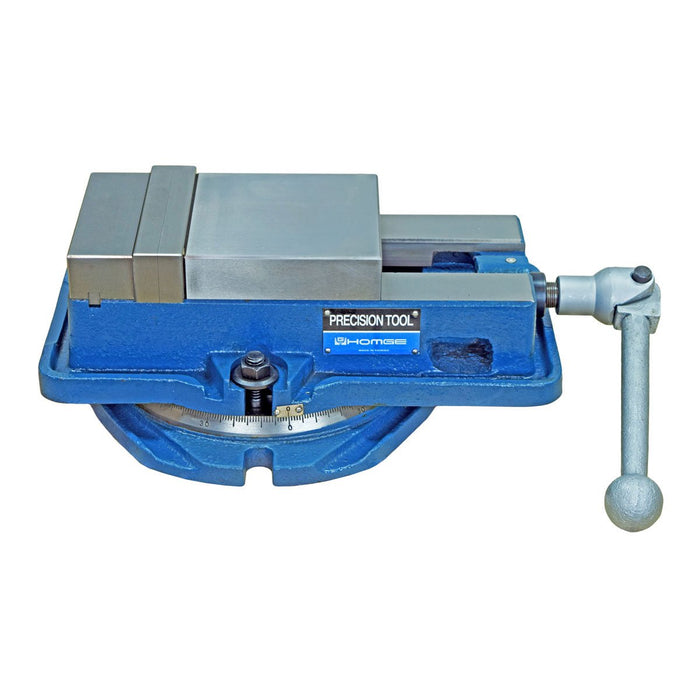

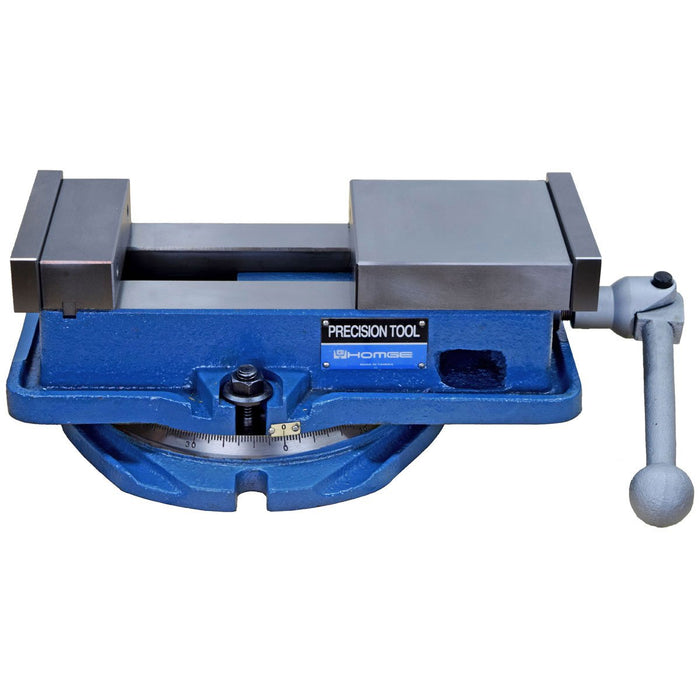

4 Inch Homge Ultra High Precision Milling Vise w/Swivel Base

4 Inch Homge Ultra High Precision Milling Vise w/Swivel Base

$349.99 - $349.99
$349.99
$349.99 - $349.99
$349.99
  • Extremely High Quality Vise
  • Hardened Bed for longer life
  • Thrust Bearings on lead screw
  • Made from Strong Ductile Iron
  • Precision Ground Surfaces to .0006"
  • Complete with 360 Degree Swivel Base
  • Locking Mechanism with Downward Force to help avoid jaw lifting
  • Removable Jaws can be re-positioned to exterior for larger holding capacity
  • Can be used with or without swivel base
  • Swivel Handle Included

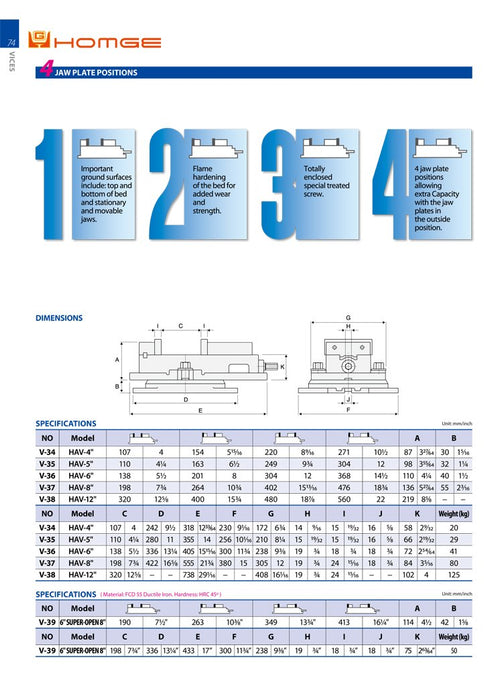

  • Please see pictures for complete specifications
Availability:
Available on Backorder

*Mounting hardware not included, all vises require optional 52 pc clamp kit to mount to table
  • Extremely High Quality Vise
  • 100% Made in Taiwan
  • Hardened Bed for longer life
  • Hardened Jaws, Medium Carbon Steel, Hardened to HRC 50 +
  • Thrust Bearings on lead screw
  • Made from Strong Ductile Iron

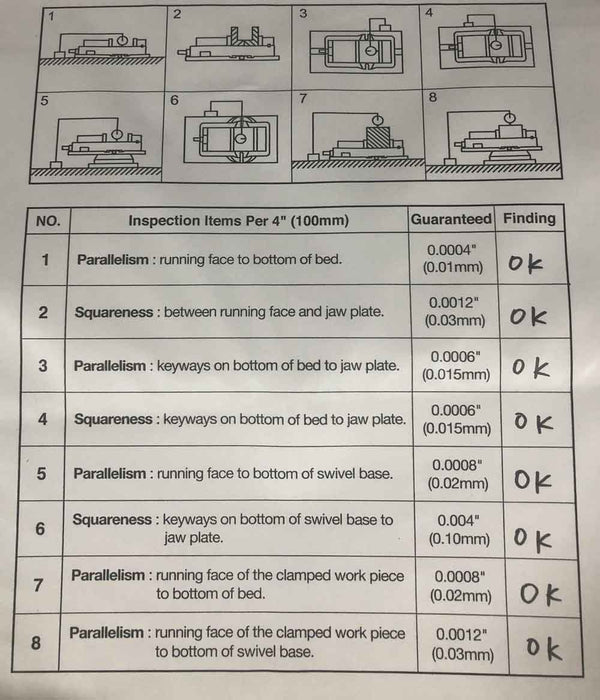

  • Precision Ground Surfaces - See spec sheet in photos for details
  • Complete with 360 Degree Swivel Base
  • Locking Mechanism with Downward Force to help avoid jaw lifting
  • Removable Jaws can be re-positioned to exterior for larger holding capacity
  • Can be used with or without swivel base
  • Swivel Handle Included
  • Please see pictures for complete specifications

Main Specifications

Accessory Type
General category that best fits this product
Milling Vises
Machine Compatibility
What types of Precision Matthews machines is this accessory compatible with?
Milling Machines

Travels

Table

DRO Specifications

Power Requirements

Motor and Drive

Cutting Capacities

Unit Dimensions

Unit Length
Length of product in packaging, in inches
15.5 in
Unit Width
Width of product in packaging, in inches
10.5 in
Unit Height
Height of product in packaging, in inches
7.5 in
Unit Weight
Gross Weight of product in packaging, in lbs
44 lb

Shipping Information

Shipping Length
Length of longest dimension of shipping skid or shipping box, in inches.
17 in
Shipping Width
Width of shipping skid or 2nd longest dimension of shipping box, in inches.
11 in
Shipping Height
Height of shipment on skid, or 3rd longest dimension of shipping box, in inches.
8 in
Shipping Weight
Approximate shipping weight when crated, palletized, or boxed up and ready to ship, in lbs.
44 lb

Machine Footprint

Ships Standard Ground, 45 Lbs, 15.5" L x 10.5" W x 8"H  Flat Rate Shipping of $29.99 each
