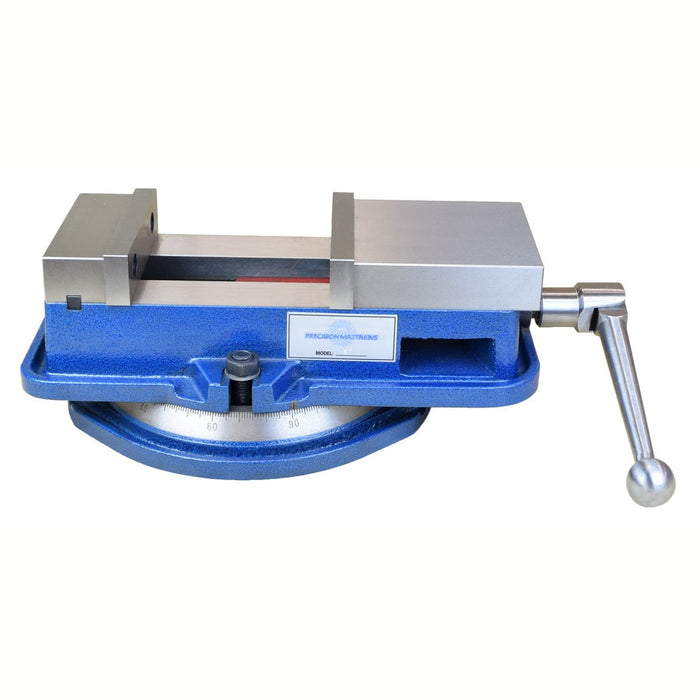

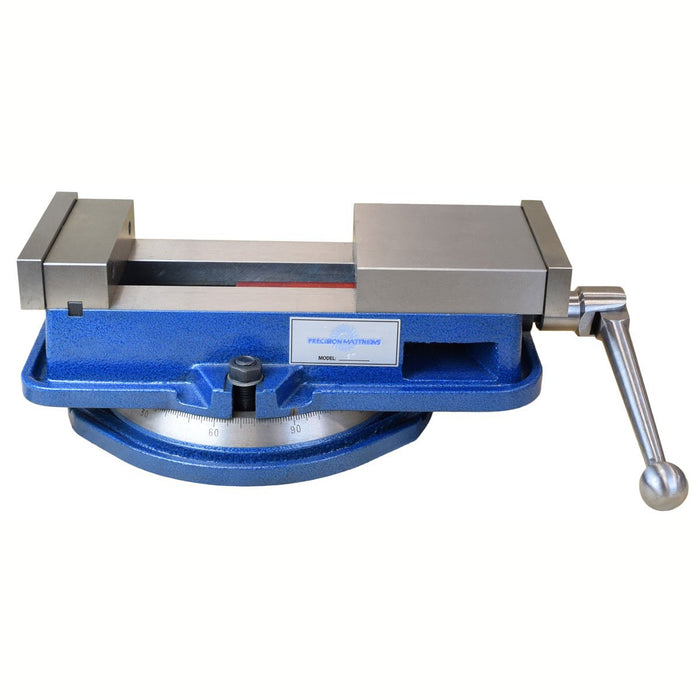

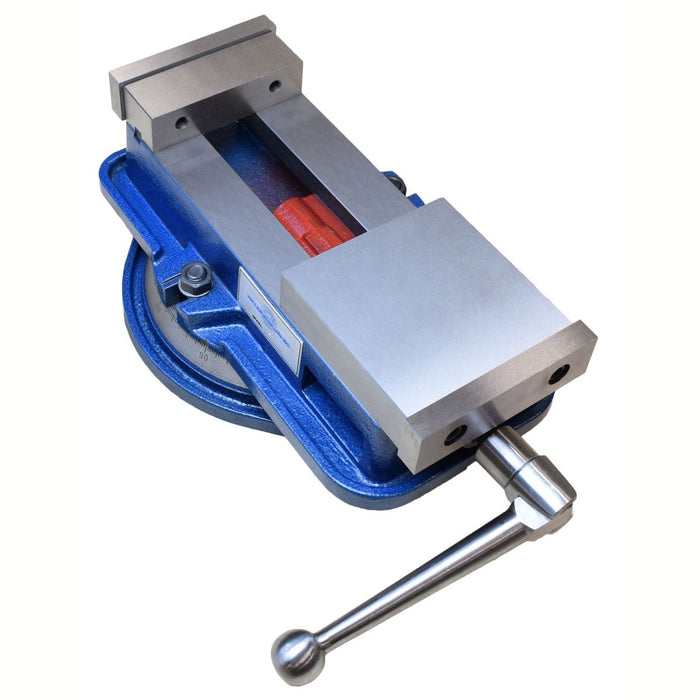

5 Inch High Precision Milling Vise w/Swivel Base

• Extremely High Quality Vise
• Hardened Bed for longer life
• Hardened Vise Jaws, Material 65Mn Steel, Hardened to 50-60 Rockwell C
• Thrust Bearings on lead screw
• Made from Strong Ductile Iron
• Precision Ground Surfaces to .0006"
• Complete with 360 Degree Swivel Base
• Locking Mechanism with Downward Force to help avoid jaw lifting
• Removable Jaws can be re-positioned to exterior for larger holding capacity
• Can be used with or without swivel base
• Swivel Handle Included
• Jaw Width 5-1/4"
• Jaw Mounting Bolt Threads: M10x1.5
• Jaw Height Approx. 1.425" (bed slideway to top of jaw)
• Max Jaw Opening 5-1/4" (inside position)
• Max Jaw Clamping, 13" (Jaws on outside position, example: clamping a flat plate on top of vise)

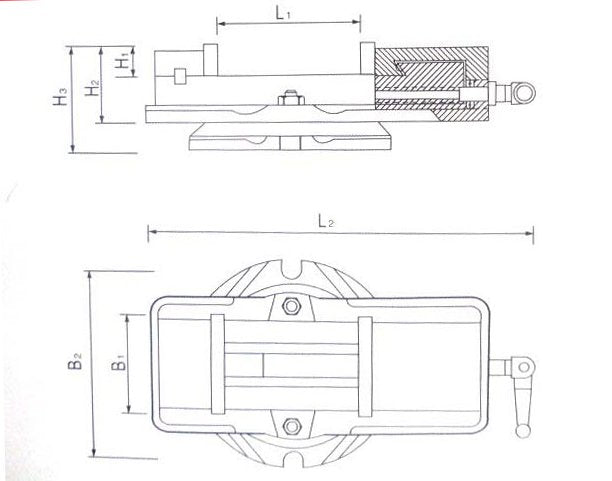

Measurements to match with drawing shown in photos:

L1 – 130mm

L2 – 430mm

B1 – 134mm

B2 – 247mm

H1 – 36mm

H2 – 98mm

H3 – 135mm
