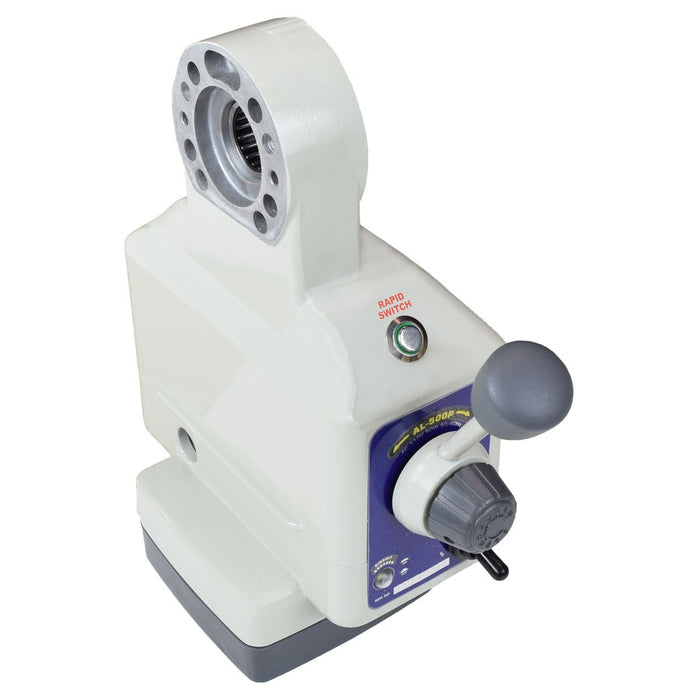

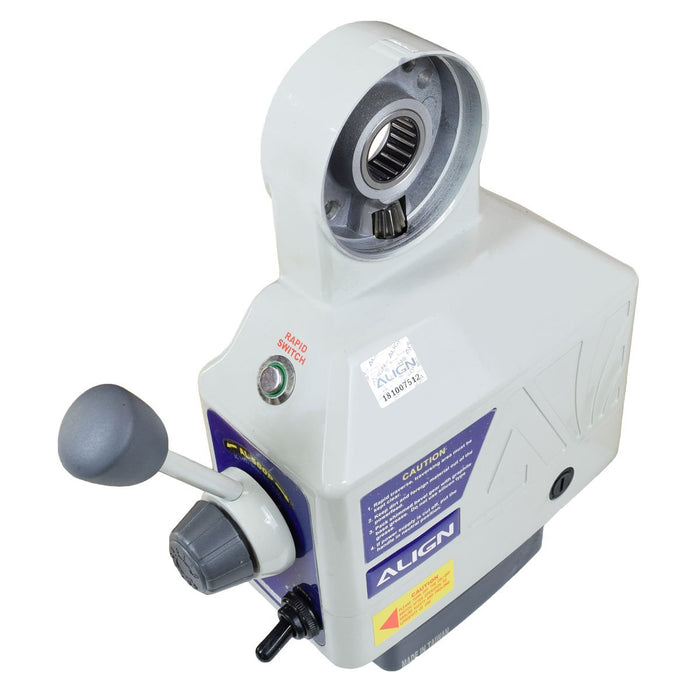

ALIGN Z Axis (Knee) Power Feed for Knee Mills

ALIGN Heavy Duty Z Axis (Knee Travel) Power Feed Units for Most Knee Type Milling Machines

• Fits MOST Knee Type Mills Made, Including Bridgeport and Most Variations. Fits our Precision Matthews Mill Models, PM-835S, PM-935T, PM-949T, PM-1054, PM-950 (2018 and earlier 950 model Needs adapter shaft #Z7308, please note at time of order if ordered for our 950 Mills - Check the threads on your Z Axis shaft, if it is 20mm x 1.5mm pitch, you need the adapter. If your thread is 3/4-16, you do not need the adapter)
• Variable Speed Control for Speed Adjustment On The Fly
• Rapid Traverse Button
• Includes Table Stops With Switch For Safety

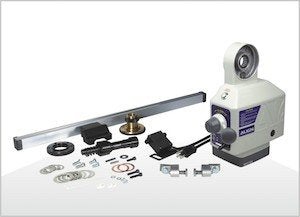

• Includes Everything Needed to Mount on MOST Knee Type Mills (Fits all of our 835/935/949/1054 PM Mills, And Also Fits PM-950V W/Adapter Shaft)
• Higher End Unit, Built for Years of Heavy Daily/Industrial Use
• 1 Year Warranty If Customer Installed, 5 Year Warranty If Ordered Installed With A PM Machine

Check your machine - Standard shaft this power feed comes with will fit 3/4-16 threads

Metric Shaft also available for special machines with Metric Z Axis Shaft Thread M20x1.5, Our part # Z7308, please click here to order: Align Metric Z Axis Shaft
