2 HP SINGLE PHASE USA MADE BALDOR Motor - 90S / 90L Motor Frame

2 HP SINGLE PHASE USA MADE BALDOR Motor - 90S / 90L Motor Frame

$499.99 - $499.99
$499.99
$499.99 - $499.99
$499.99

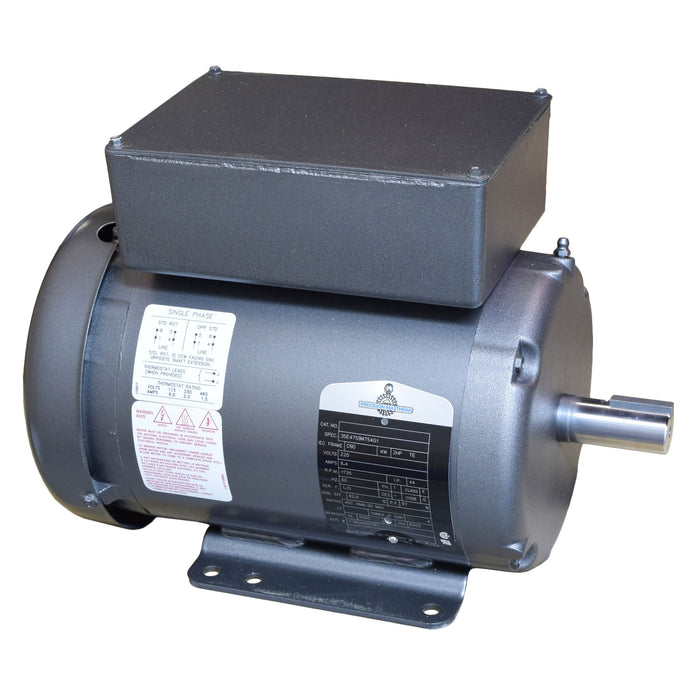

2HP, 220V Single Phase Baldor/Precision Matthews Lathe Motor  – IEC D90 / 90S / 90L Motor Frame Size

  • Now you can find a high quality, US Made Replacement Motor for your Metal Lathe or other similar machinery - No more trying to find a motor with a "close enough" fit - something that you would have to modify, find different pulleys, etc. This is a direct bolt on replacement for any machine that uses a 90S or 90L Metric (IEC) Mount - This is exclusive to us
  • Designed and built specifically for Precision Matthews, made in the USA By Baldor.
  • 2 HP, 220 V SINGLE PHASE Power (Can be used on 208V or 240V Single Phase)
  • Extremely high quality replacement motor for our PM-1236 Lathe, and will fit many other models of lathes or similar machinery out there
  • Motor turns in Forward and Reverse Direction
  • Simple, 4 Wire Connection
  • Direct Bolt on replacement for D90, 90S or 90L IEC mount
  • 24mm Shaft Size (.945”)
Availability:
In stock

2HP, 220V Single Phase Baldor/Precision Matthews Lathe Motor - IEC 90S / 90L Motor Frame Size

  • Now you can find a high quality, US Made Replacement Motor for your Metal Lathe or other similar machinery - No more trying to find a motor with a "close enough" fit - something that you would have to modify, find different pulleys, etc. This is a direct bolt on replacement for any machine that uses a 90S or 90L Metric (IEC) Mount - This is exclusive to us - Designed and built specifically for Precision Matthews, made in the USA By Baldor.
  • 220V SINGLE PHASE Power (Can be used on 208V or 240V Single Phase)
  • Extremely high quality replacement motor for our PM-1236 and PM-1440GT Lathes, and will fit many other models of lathes or similar machinery out there
  • IEC motor frame, direct bolt on and same shaft size for easy upgrade / replacement of your original motor
  • Motor turns in Forward and Reverse Direction
  • Simple, 4 Wire Connection
  • Direct Bolt on replacement for 90S or 90L IEC mount
  • 24mm Shaft Size (.945”)
  • TEFC Design (Totally Enclosed Fan Cooled) Suitable for use on machine tools
  • 5 Year Warranty when used with our Precision Matthews PM-1236, 1 year standard warranty when purchased as a replacement for a Non Precision Matthews machine
  • MADE IN USA

Please click here for drawings and mounting dimensions: 2HP PM/Baldor Motor Drawing

Please click here for performance data 2HP Motor Performance Data

Please click here for wiring instructions / installing on PM-1236 Lathe: Baldor Replacment Motor PM-1236 PM-1440GT

Main Specifications

Accessory Type
General category that best fits this product
Motors
Machine Compatibility
What types of Precision Matthews machines is this accessory compatible with?
Lathes

Travels

Table

DRO Specifications

Power Requirements

Voltage
Voltage Rating
220V
Power Frequency
Power line frequency compatibility, in Hz
60Hz
Horsepower
Power output of motor, in HP
2

Motor and Drive

Cutting Capacities

Unit Dimensions

Unit Length
Length of product in packaging, in inches
23 in
Unit Width
Width of product in packaging, in inches
13 in
Unit Height
Height of product in packaging, in inches
12.5 in
Unit Weight
Gross Weight of product in packaging, in lbs
49 lb

Shipping Information

Shipping Length
Length of longest dimension of shipping skid or shipping box, in inches.
23 in
Shipping Width
Width of shipping skid or 2nd longest dimension of shipping box, in inches.
13 in
Shipping Height
Height of shipment on skid, or 3rd longest dimension of shipping box, in inches.
13 in
Shipping Weight
Approximate shipping weight when crated, palletized, or boxed up and ready to ship, in lbs.
49 lb

Machine Footprint

Flat rate of $49.99 shipping in the 48 US States

Please click here for drawings and mounting dimensions: 2HP PM/Baldor Motor Drawing

Please click here for performance data 2HP Motor Performance Data

Please click here for wiring instructions / installing on PM-1236 Lathe: Baldor Replacment Motor PM-1236 PM-1440GT

Lubrication: Motor is equipped with grease fittings. Recommended lubrication interval from Baldor is 6,000 Hours, 2.5 Pumps of NLGI Grade 2 Grease. Essentially the motor is maintenance free with this long service interval.
