5/8" Shank Turning Tool Set

5/8" Shank Turning Tool Set

$69.99 - $69.99
$69.99
$69.99 - $69.99
$69.99
  • 5/8" Shank
  • Aluminum Fitted Case Included
  • Sized Perfectly for smaller lathes in the 12" to 15" Swing Range
  • Includes Right and Left Turning Tools, 5 Inserts for steel/stainless steel, and 5 inserts for aluminum/brass
  • All tools in this kit use the same inserts, making replacement much easier and less confusing
  • Uses the popular CCMT/CCGT 300 Series Inserts, meaning that you can easily source replacement cutting inserts later on - No special inserts needed like many sets out there
  • Includes many commonly worn/lost spare parts in the kit to keep you going for a long time to come
  • Very high quality compared with most others out there on the market
Availability:
In stock

Items included in this set:

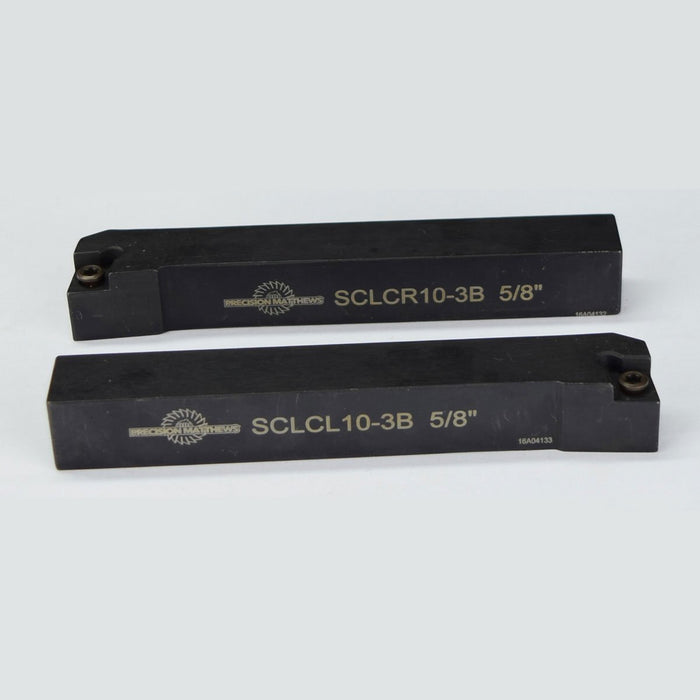

1Pc. SCLCR10-3 (Right Hand Turning, 5/8" Shank)
1Pc. SCLCL10-3 (Left Hand Turning, 5/8" Shank)

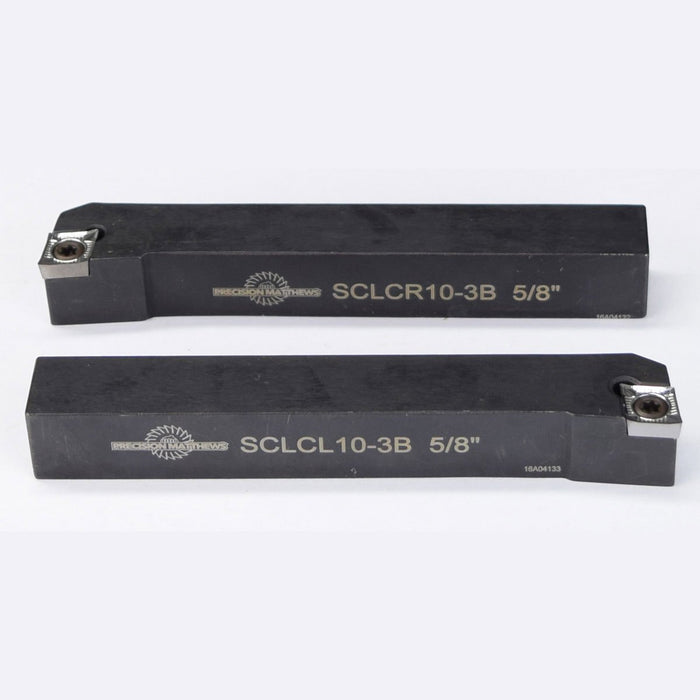

(5) Pc. Insert for Aluminum (Silver Color Inserts)

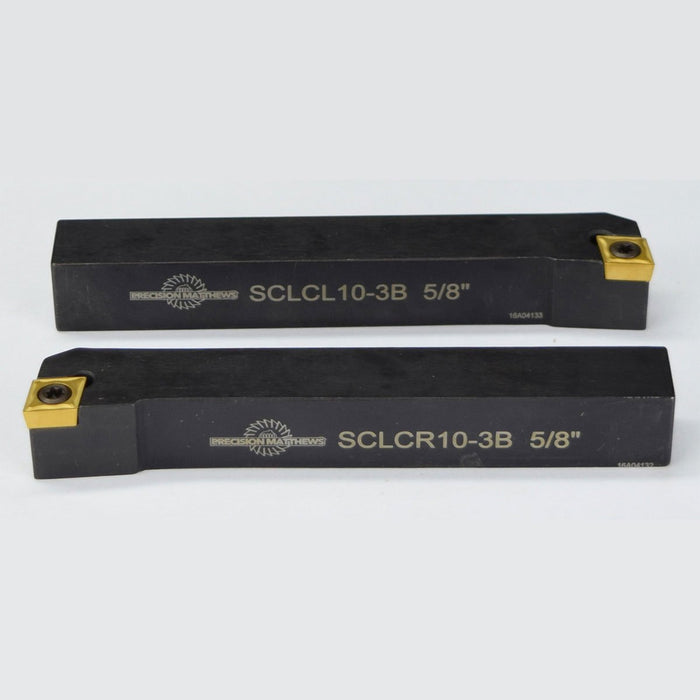

(5) Pc. Insert for Steel (Gold Color Inserts)
(2) Pcs extra screw for inserts

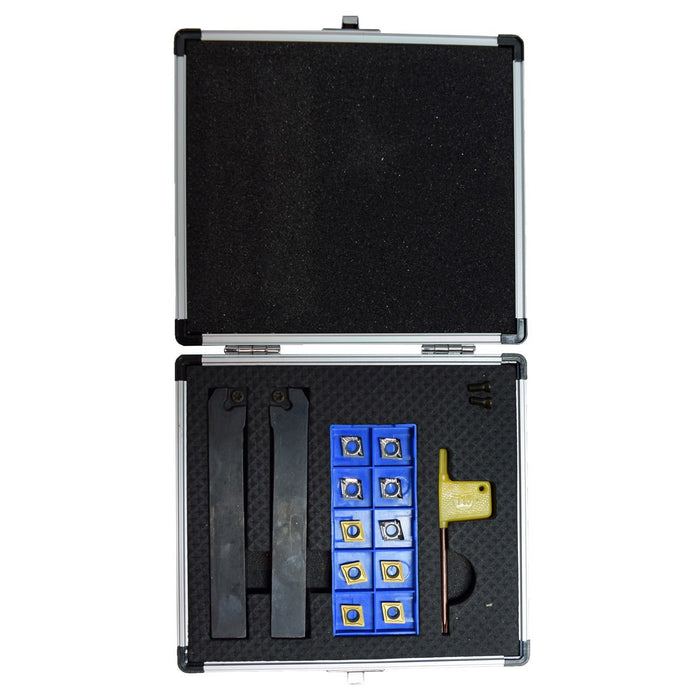

All in an aluminum case as shown

Replacement inserts are the common CCGT or CCMT Series inserts. For example, CCMT-321

Main Specifications

Accessory Type
General category that best fits this product
Cutting Tools
Machine Compatibility
What types of Precision Matthews machines is this accessory compatible with?
Lathes

Travels

Table

DRO Specifications

Power Requirements

Motor and Drive

Cutting Capacities

Unit Dimensions

Unit Length
Length of product in packaging, in inches
6.75 in
Unit Width
Width of product in packaging, in inches
6.75 in
Unit Height
Height of product in packaging, in inches
1.5 in
Unit Weight
Gross Weight of product in packaging, in lbs
2 lb

Shipping Information

Shipping Length
Length of longest dimension of shipping skid or shipping box, in inches.
13 in
Shipping Width
Width of shipping skid or 2nd longest dimension of shipping box, in inches.
11 in
Shipping Height
Height of shipment on skid, or 3rd longest dimension of shipping box, in inches.
2.5 in
Shipping Weight
Approximate shipping weight when crated, palletized, or boxed up and ready to ship, in lbs.
2 lb

Machine Footprint

Flat Rate of $9.99 Shipping in the 48 US States.

If this item is ordered with any machinery item, no shipping will be charged for this item, that will calculate automatically at checkout. (Example, if this item is ordered with a lathe or milling machine, you pay only the shipping for the lathe or milling machine, and this will ship in the crate with them at no extra charge)

Also, If you order more than one of these items, or if this is ordered with any other product on this web site with the same $9.99 shipping category, shipping will be combined and will ship for a total of $9.99.  (Example, if you order 2 of this item, shipping will still only be a total of $9.99)

AND if you order this item with any item of a higher shipping cost, you will only pay the one higher shipping cost, so this will ship with that other item at no additional shipping cost.

If you do not understand any of this, just add the items to your cart, input your city and zip code, and it will calculate the shipping for you so you know what it will be.
