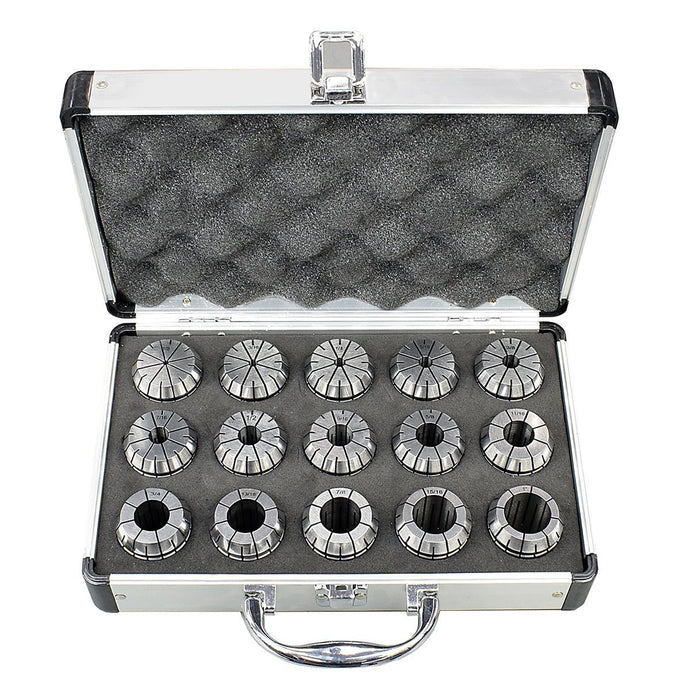

15 Piece Precision Inch ER-40 Collet Set, 1/8" to 1"

15 Piece Precision Inch ER-40 Collet Set, 1/8" to 1"

$109.99 - $109.99
$109.99
$109.99 - $109.99
$109.99
  • Fits any machine / Accessory that accepts ER-40 Collets
  • Comes in an aluminum case for easy storage
  • Precision Ground Clamping Surfaces, max runout .0005″
  • Each Collet is marked with size for easy identification
  • Collets are Hardened and Precision Ground
  • Made from ASTM A29-93 Steel
  • Guaranteed to Accuracy of Clamping to 0.0005″ or less
  • 3 Year Warranty
Availability:
In stock
  • 15 Pc Set covers most common sizes, from 1/8-1": 1/8, 3/16, 1/4, 5/16, 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4, 13/16, 7/8, 15/16, 1
  • Fits any machine / accessory that accepts an ER-40 Collet
  • Comes in an aluminum case for easy storage
  • Collets are Hardened and Precision Ground
  • Made from ASTM A29-93 Steel
  • Guaranteed to Accuracy of Clamping to 0.0005" or less
  • ER-40 collets have a wide range of clamping. The sizes listed are the max sizes that the collet can hold. Collets have a range of .039" (1mm) For example, a 1/2" ER-40 collet can clamp a max size of 1/2", but can clamp down to .461". Another example, a 1" ER-40 collet can clamp a maximum size of 1", all the way down to .961". So you have a very wide range of sizes you can use these collets for.
  • **These collets snap in to the holders. If you look at the ER collet nut, the hole will appear to be off center. Please see instruction sheets showing how to snap the collet in, this is how they are designed**
  • 3 Year Warranty

Main Specifications

Accessory Type
General category that best fits this product
Collets
Machine Compatibility
What types of Precision Matthews machines is this accessory compatible with?
Milling Machines, Lathes
Runout +/-
-
0.0005

Travels

Table

DRO Specifications

Power Requirements

Motor and Drive

Cutting Capacities

Unit Dimensions

Unit Length
Length of product in packaging, in inches
11 in
Unit Width
Width of product in packaging, in inches
7.5 in
Unit Height
Height of product in packaging, in inches
3 in
Unit Weight
Gross Weight of product in packaging, in lbs
10 lb

Shipping Information

Shipping Length
Length of longest dimension of shipping skid or shipping box, in inches.
12 in
Shipping Width
Width of shipping skid or 2nd longest dimension of shipping box, in inches.
12 in
Shipping Height
Height of shipment on skid, or 3rd longest dimension of shipping box, in inches.
6 in
Shipping Weight
Approximate shipping weight when crated, palletized, or boxed up and ready to ship, in lbs.
10 lb

Machine Footprint

Flat rate of $15.99 shipping anywhere in the 48 US States (Ships at no additional charge if ordered and shipped with a machine, will calculate automatically at checkout)
