BS-1 Semi Universal Dividing Head Set, 5" Height, Includes 6" Chuck

BS-1 Semi Universal Dividing Head Set, 5" Height, Includes 6" Chuck

$499.99 - $499.99
$499.99
$499.99 - $499.99
$499.99
  • 3 Jaw Chuck Included (6" Size)
  • Complete Set, with chuck, tailstock, and more as shown

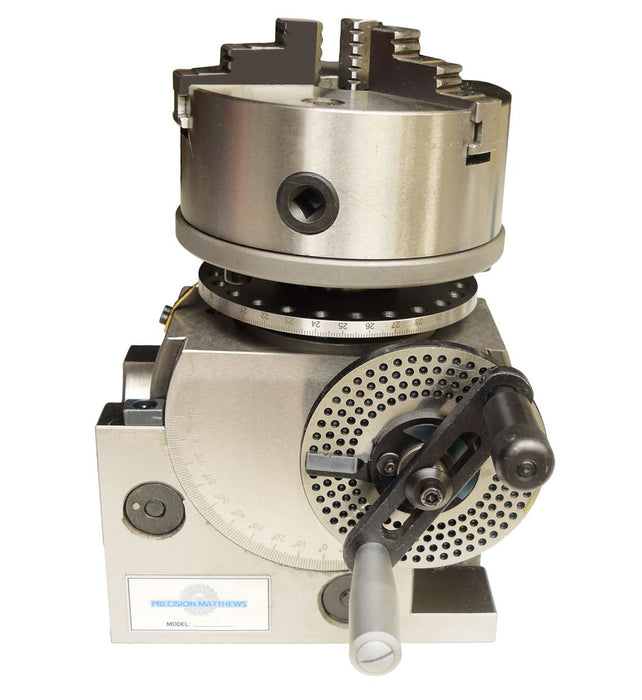

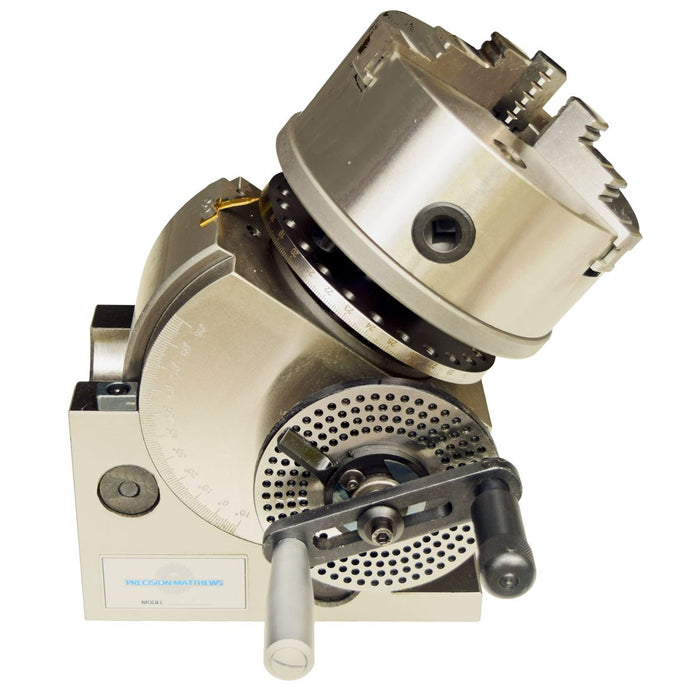

  • Head tilts 10 degrees down, and 90 degrees in the vertical direction, (Chuck pointing straight up) so it can be used for any angle needed
  • Quick indexing feature, for fast indexing without dividing plates, in 15 degree increments (24 positions) makes quick work of simple tasks such as machining hex shaped bolt heads
  • (3) Dividing Plates cover almost any divisions you would ever need
  • Hardened Worm Gear for longer life
  • Backed by a 5 year warranty
Availability:
In stock

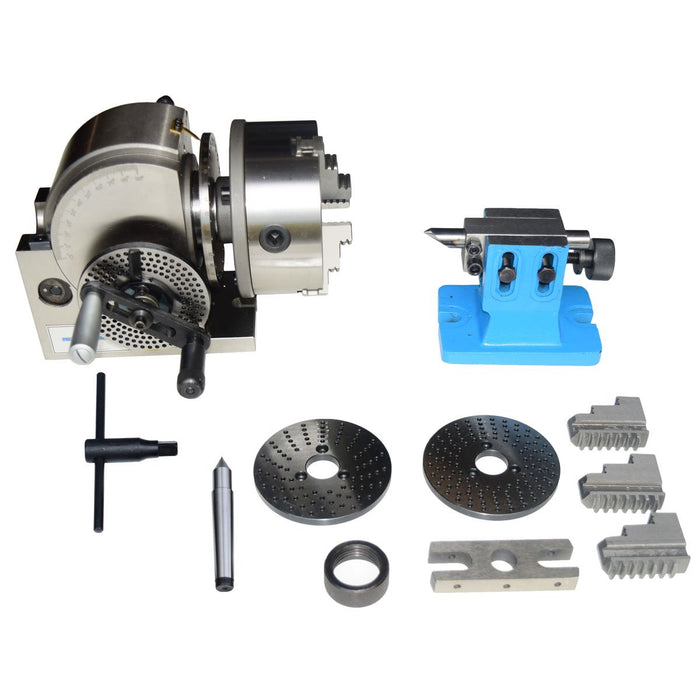

This set comes complete with everything as shown, as listed below:
Dividing Head
6" 3 Jaw Chuck, with inside and outside jaws, and chuck wrench
Adjustable Tailstock
Dividing Plates (3 plates Total)
Spindle Center
Dog Driver (For use when turning between centers)
5 YEAR Warranty against any defective parts

Main Specifications:
Center Height: 5"
Swing: 10"
Spindle Bore (Clear Through): .787"
Spindle Mount: 1-1/2" x 8 TPI
Spindle Taper Runout: .0006"
Gear Ratio: 40:1
Spindle Taper BS-9
Main Features:
Head tilts 10 degrees down, and 90 degrees in the vertical direction, so it can be used for any angle needed
Quick indexing feature, for fast indexing without dividing plates, in 15 degree increments (24 positions) makes quick work of simple tasks such as machining hex shaped bolt heads
(3) Dividing Plates cover any divisions you would need
Hardened Worm Gear for longer life
Backed by a 5 year warranty

Main Specifications

Accessory Type
General category that best fits this product
Dividing Heads
Machine Compatibility
What types of Precision Matthews machines is this accessory compatible with?
Milling Machines

Travels

Table

DRO Specifications

Power Requirements

Motor and Drive

Cutting Capacities

Unit Dimensions

Unit Length
Length of product in packaging, in inches
21 in
Unit Width
Width of product in packaging, in inches
11.5 in
Unit Height
Height of product in packaging, in inches
11.5 in
Unit Weight
Gross Weight of product in packaging, in lbs
91 lb

Shipping Information

Shipping Length
Length of longest dimension of shipping skid or shipping box, in inches.
24 in
Shipping Width
Width of shipping skid or 2nd longest dimension of shipping box, in inches.
12 in
Shipping Height
Height of shipment on skid, or 3rd longest dimension of shipping box, in inches.
12 in
Shipping Weight
Approximate shipping weight when crated, palletized, or boxed up and ready to ship, in lbs.
91 lb

Machine Footprint

Flat rate of $79.99 Shipping in the 48 US States (Ships at no extra charge if ordered and shipped with a machine)
