35 Piece Precision Inch 5C Collet Set, 1/16" to 1-1/8"

35 Piece Precision Inch 5C Collet Set, 1/16" to 1-1/8"

$229.99 - $229.99
$229.99
$229.99 - $229.99
$229.99

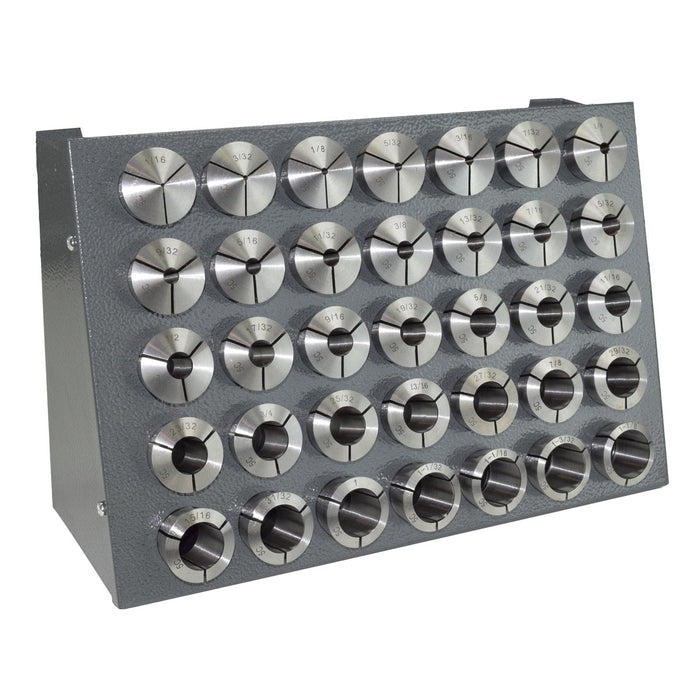

  • Rack Included, As Shown
  • 35 Pc Set covers most common sizes, from 1/16 to 1-1/8", every 32nd size
  • Fits any machine / Accessory with 5-C Spindle Taper
  • Precision Ground Clamping Surfaces, max runout .0005"
  • Threaded Internally and Externally
  • Each Collet is marked with size for easy identification
  • Collets are Hardened and Precision Ground
  • Made from ASTM A29-93 Steel
  • Clamping Surface Hardened to 55-60 HRC
  • Spring Part is Hardened to 40-45 HRC
  • Guaranteed to Accuracy of Clamping to 0.0005" or less
  • 3 Year Warranty Against Defects
Availability:
In stock
  • 35 Pc Set covers many more sizes, from 1/16 to 1-1/8", every 1/32nd size
  • Rack included, as shown
  • Fits any machine / accessory with 5-C Spindle Taper
  • Precision Ground Clamping Surfaces, max runout .0005"
  • Threaded Internally and Externally
  • Each collet is marked with size for easy identification
  • Collets are Hardened and Precision Ground
  • Made from ASTM A29-93 Steel
  • Clamping Surface Hardened to 55-60 HRC
  • Spring Part is Hardened to 40-45 HRC
  • Guaranteed to Accuracy of Clamping to 0.0005" or less
  • Rack is 13-1/2"x9-1/2"
  • 3 Year Warranty Against Defects

Main Specifications

Accessory Type
General category that best fits this product
Collets
Machine Compatibility
What types of Precision Matthews machines is this accessory compatible with?
Milling Machines, Lathes
Runout +/-
-
0.0005

Travels

Table

DRO Specifications

Power Requirements

Motor and Drive

Cutting Capacities

Unit Dimensions

Unit Length
Length of product in packaging, in inches
14 in
Unit Width
Width of product in packaging, in inches
11 in
Unit Height
Height of product in packaging, in inches
6 in
Unit Weight
Gross Weight of product in packaging, in lbs
23 lb

Shipping Information

Shipping Length
Length of longest dimension of shipping skid or shipping box, in inches.
14 in
Shipping Width
Width of shipping skid or 2nd longest dimension of shipping box, in inches.
11 in
Shipping Height
Height of shipment on skid, or 3rd longest dimension of shipping box, in inches.
8 in
Shipping Weight
Approximate shipping weight when crated, palletized, or boxed up and ready to ship, in lbs.
23 lb

Machine Footprint

Flat rate of $15.99 shipping anywhere in the 48 US States (Ships at no additional charge if ordered and shipped with a machine, will calculate automatically at checkout)
